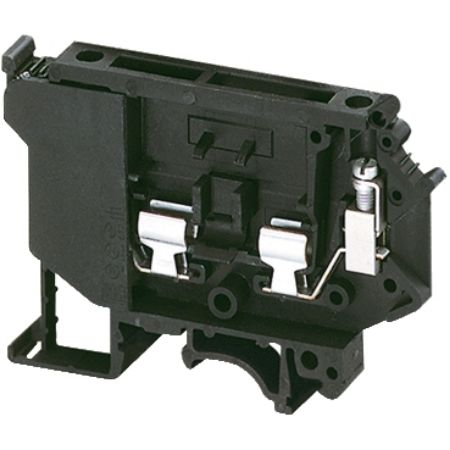

Picture of Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with 110-250V LED, 2 PO
SKU:

NSYTRV42SF5LA

Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with 110-250V LED, 2 PO

Old price: $14.19 INC GST
$12.77 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with 110-250V LED, 2 PO
  • It belongs to linergy fixed carrier terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 72.5 mm
Device short name TRV
Colour black
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type fused disconnect
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 8 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 0
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 56.5 mm
Fuse size 5 x 20 mm
[In] rated current 6.3-6.3 A CSA, 12-12 A cURus, 6.3-6.3 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 20 g
Provided equipment 110...250 V light indicator
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.5-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 8.2 mm
Cable cross section 0.2-4 mm², solid, 0.2-4 mm², flexible without cable end
Environment
Product certifications EAC, CSA, cURus
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.300 cm
Package 1 Width 11.000 cm
Package 1 Length 6.200 cm
Package 1 Weight 19.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 6.300 cm
Package 2 Width 11.000 cm
Package 2 Length 31.000 cm
Package 2 Weight 998.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.390 kg
Unit Type of Package 4 4
Number of Units in Package 4 3200
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 78.076 kg
