SKU:

NSYTRR102

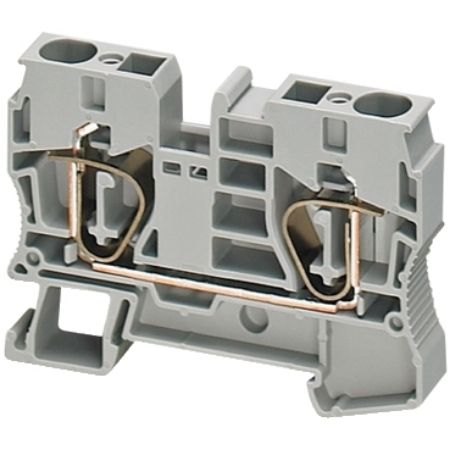

Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 10mm², grey

Old price: $5.67 INC GST

Price: $5.10 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 10mm², grey

It belongs to linergy passthrough terminal block with 10 mm² nominal cross section.

Mounting by clip-on and sideways connection by single-level 1x1 spring terminals.

Releasing pressure on the sides stops the flow of cable ends.

Facilitates storage by avoiding mixing cable ends of different sizes

Identifies the cross section of cable ends it contains

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Accessory / separate part category	connection accessory
Terminal block level	1
Length	71.5 mm
Device short name	TRR
Colour	grey
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	10 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	18 mm
Tool type	disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input	2
Connection position	top
Connections - terminals	1 x spring terminal: downstream, 1 x spring terminal: upstream
Height	50.5 mm
[In] rated current	65-65 A cURus, 65-65 A CSA, 57-57 A conforming to EN/IEC 60947-7-1
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant	3.7 at 1 MHz
Net weight	25.3 g
Number of terminals	2
Product compatibility	Spacial enclosures
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	600 V cURus, 800 V conforming to EN/IEC 60947-7-1, 600 V CSA
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	10.2 mm
Cable cross section	0.2-16 mm², solid without cable end, 0.5-10 mm², flexible with cable end, 0.2-16 mm², solid with cable end, 0.2-10 mm², flexible without cable end
Environment
Product certifications	IEC-Ex, EAC, LR, ATEX, cURus, DNV, GL, CSA, VDE
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	7.000 cm
Package 1 Length	13.500 cm
Package 1 Weight	24.000 g
Unit Type of Package 2	2
Number of Units in Package 2	50
Package 2 Height	5.000 cm
Package 2 Width	7.000 cm
Package 2 Length	27.000 cm
Package 2 Weight	1.270 kg
Unit Type of Package 3	3
Number of Units in Package 3	400
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	10.663 kg
