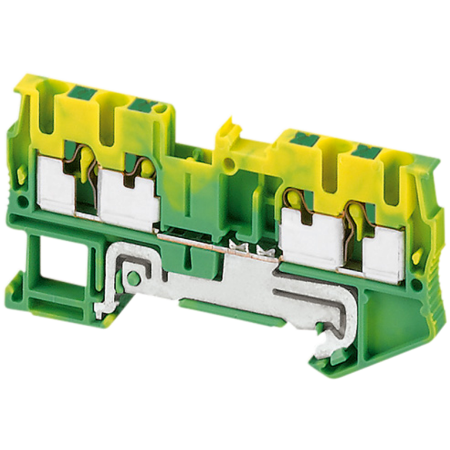

Picture of Terminal block, Linergy TR, push-in type, 4 points, 2.5mm², protective earth, green-yellow, set of 50
SKU:

NSYTRP24PE

Terminal block, Linergy TR, push-in type, 4 points, 2.5mm², protective earth, green-yellow, set of 50

Old price: $12.54 INC GST
$11.29 INC GST
Availability: Please contact our sales team on 1300 724 622.
Terminal block, Linergy TR, push-in type, 4 points, 2.5mm², protective earth, green-yellow, set of 50
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRP
Colour green-yellow
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Terminal block level 1
Length 72 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Product compatibility Spacial enclosures
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 10 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type connection: without tool, disconnection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 2 x push-in: upstream, 2 x push-in: downstream
Height 36.5 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 5.2 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 13.6 g
Cable cross section 0-2.5 mm², flexible with cable end, 0.08-2.5 mm², flexible without cable end, 0.08-4 mm², solid
Number of terminals 4
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications ATEX, CSA, LR, GL, EAC, cURus, VDE, IEC-Ex
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 3.500 cm
Package 1 Length 7.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 6.000 cm
Package 2 Width 8.500 cm
Package 2 Length 27.000 cm
Package 2 Weight 686.000 g
