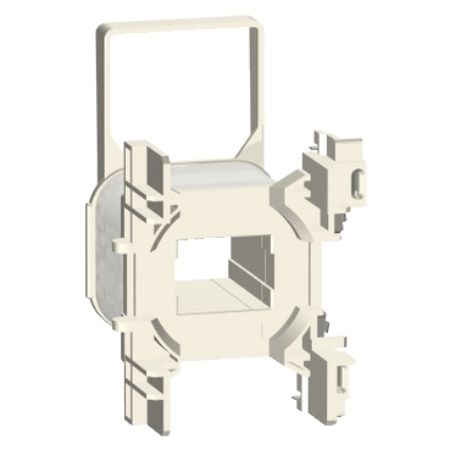

Picture of TeSys; TeSys Deca, contactor coil, LXD3, 48 V AC 50/60 Hz for 40… 65 A contactor
SKU:

LXD3E7

TeSys; TeSys Deca, contactor coil, LXD3, 48 V AC 50/60 Hz for 40… 65 A contactor

Old price: $266.20 INC GST
$167.71 INC GST
Available for Shipping : 12-Aug-2025
TeSys; TeSys Deca, contactor coil, LXD3, 48 V AC 50/60 Hz for 40… 65 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40A to D65A and LC1 DT60A, DT80A. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LXD3
Product compatibility LC1DT80A, LC1D40A...D65A, LC1DT60A
Mechanical durability 6 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 0.48 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 48 V AC 50/60 Hz
Average resistance 7.97 Ohm at 20 °C
Complementary
Heat dissipation 4-5 W at 50/60 Hz
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight 0.07 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 5.7 cm
Package 1 Length 9.7 cm
Package 1 Weight 123.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.048 kg

Customers who bought this item also bought

Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NO + 2NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NO + 2NC, front mounting, screw clamp terminals

LADN22
$60.08 INC GST $95.37 INC GST
View Detail

Related products

Picture of Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 48V AC 50/60Hz coil, screw clamp terminals

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 48V AC 50/60Hz coil, screw clamp terminals

LC2D40AE7
$805.27 INC GST $1,278.20 INC GST
View Detail

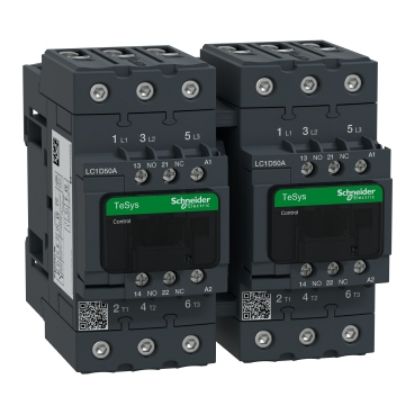

Picture of Reversing contactor, TeSys Deca, 3P(3NO), AC-3, <=440V 38A, 100V AC coil, screw clamp terminal

Reversing contactor, TeSys Deca, 3P(3NO), AC-3, <=440V 38A, 100V AC coil, screw clamp terminal

LC2D50AE7
$975.74 INC GST $1,548.80 INC GST
View Detail
Picture of Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 65A, 48V AC 50/60Hz coil, screw clamp terminals

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 65A, 48V AC 50/60Hz coil, screw clamp terminals

LC2D65AE7
$1,358.28 INC GST $2,156.00 INC GST
View Detail
Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

LC1D40A3E7
$258.14 INC GST $409.75 INC GST
View Detail

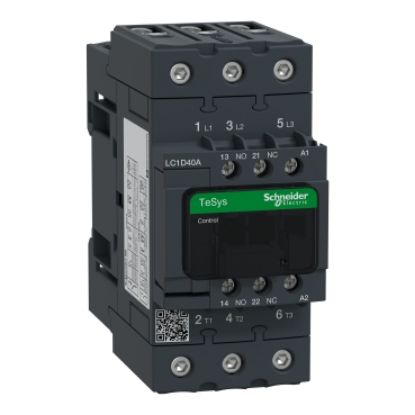

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 48VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 48VAC 50/60Hz coil

LC1D40AE7
$310.12 INC GST $492.25 INC GST
View Detail

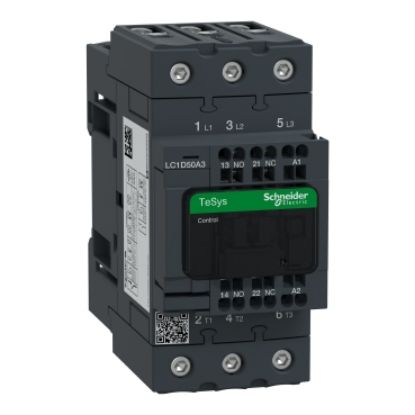

Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 50A, 48V AC 50/60Hz coil, spring terminals

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 50A, 48V AC 50/60Hz coil, spring terminals

LC1D50A3E7
$409.56 INC GST $650.10 INC GST
View Detail

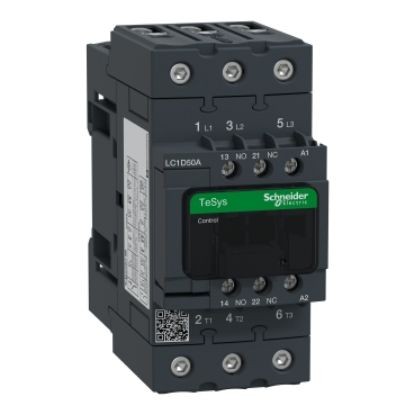

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 48VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 48VAC 50/60Hz coil

LC1D50AE7
$369.37 INC GST $586.30 INC GST
View Detail

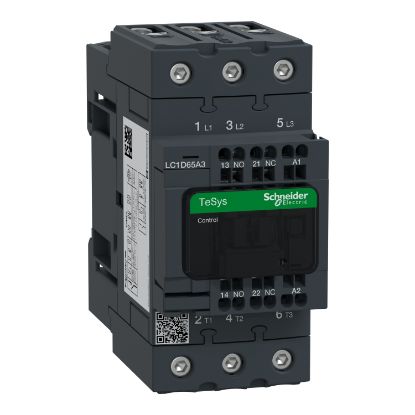

Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 65A, 48V AC 50/60Hz coil, lugs-ring terminals
