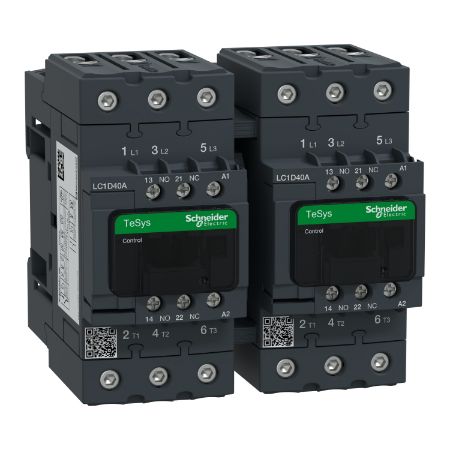

Picture of Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 48V AC 50/60Hz coil, screw clamp terminals
SKU:

LC2D40AE7

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 48V AC 50/60Hz coil, screw clamp terminals

Old price: $1,278.20 INC GST
$805.27 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 48V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides 48V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Electrical durability 1.5 Mcycles 40 A AC-3e at Ue <= 440 V, 1.4 Mcycles 60 A AC-1 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V
Device presentation preassembled with reversing power busbar
Connections - terminals power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²solid, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²solid, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible with cable end, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating 80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Standards IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Control circuit type AC at 50/60 Hz
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Operating time 12...26 ms closing, 4...19 ms opening
[Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3e, AC-1, AC-3
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole 2.4 W AC-3e, 5.4 W AC-1, 2.4 W AC-3
[Uc] control circuit voltage 48 V AC 50/60 Hz
Product certifications UKCA, BV, GL, LROS (Lloyds register of shipping), DNV, CCC, GOST, RINA, CSA, UL
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit, 165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit
Device short name LC2D
Mechanical durability 6 Mcycles
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Range TeSys Deca, TeSys
Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
[Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Range of product TeSys Deca, TeSys D
Interlocking type mechanical
Motor power kW 30 kW at 660...690 V AC 50...60 Hz, 22 kW at 500 V AC 50...60 Hz, 22 kW at 440 V AC 50...60 Hz, 22 kW at 415 V AC 50...60 Hz, 18.5 kW at 380...400 V AC 50...60 Hz, 11 kW at 220...230 V AC 50...60 Hz
Motor power hp 30 hp at 460/480 V AC 60 Hz for 3 phases motors, 3 hp at 115 V AC 60 Hz for 1 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phases motors, 30 hp at 575/600 V AC 60 Hz for 3 phases motors, 10 hp at 230/240 V AC 60 Hz for 3 phases motors, 5 hp at 230/240 V AC 60 Hz for 1 phase motors
Poles description 3P
Maximum operating rate 3600 cyc/h 60 °C
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Product name TeSys Deca, TeSys D
Product or component type reversing contactor
Contactor application motor control, resistive load
Mounting support rail, plate
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC2D
Signalling circuit frequency 25...400 Hz
Motor starter type reversing contactor
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in suppressor module
Inrush power in VA 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Contactor coil voltage 48 V AC standard
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 4-5 W at 50/60 Hz
Minimum switching voltage 17 V for signalling circuit
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Power range 15-25 kW at 480-500 V 3 phases, 15-25 kW at 380-440 V 3 phases, 7-11 kW at 200-240 V 3 phases
Insulation resistance > 10 MOhm for signalling circuit
Contact compatibility M2
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage -60-80 °C
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Height 122 mm
Ambient air temperature for operation 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 1.87 kg
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Mechanical robustness shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms, vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Depth 120 mm
Width 119 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 16.200 cm
Package 1 Length 19.800 cm
Package 1 Weight 2.073 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.782 kg
