SKU:

LV540510

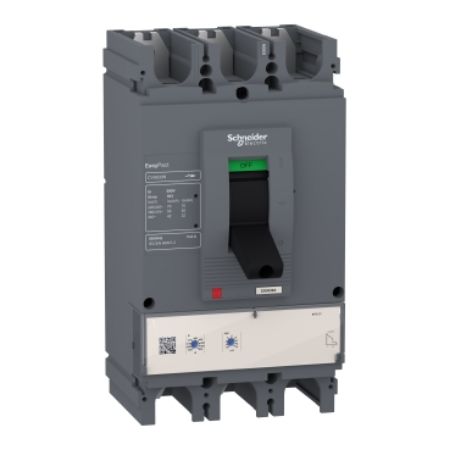

circuit breaker, EasyPact CVS400N, 50kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 3P3d

$1,703.68 INC GST

Qty:

Available for Shipping : 27-Jul-2025

Product Selector

circuit breaker, EasyPact CVS400N, 50kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 3P3d

Excellent breaking capacity ensures circuit safety

Safe to use: accompanied ETS 2.3 trip unit for long time and short time protections

Certified for operation in heavily polluted environment

Green premium product: environmental friendly

Easy intallation: by blackplate or Din rail

Very high proteciton degree, also for extended rotary handle

Unique common accessories help standardisation of components

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

CAD

Environmental Disclosure

Circularity Profile

Instruction sheet

Product Page Link

Product Data Sheet

This device is a rated current 400A circuit breaker from EasyPact CVS400N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied ETS 2.3 trip unit for electronic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width,255mm height,110mm depth.

Products specifications

Attribute name	Attribute value
Main
Device short name	CVS400N
Device application	distribution
Protection type	instantaneous short-circuit protection, overload protection (long time), short time short-circuit protection
Trip unit rating	400-400 A at 40 °C
Breaking capacity	42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Range	EasyPact
Protected poles description	3D
Earth-leakage protection	without
Range of product	EasyPact CVS400...630
Trip unit name	ETS 2.3
Trip unit technology	electronic
Poles description	3P
Utilisation category	category A
Product name	EasyPact CVS
Product or component type	circuit breaker
Network type	AC
[In] rated current	400 A at 40 °C
Complementary
Short-time pick-up adjustment type Isd	adjustable 9 settings
[Uimp] rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-2
Compatibility code	CVS400
Mechanical durability	15000 cycles
Electrical durability	6000 cycles 415 V In conforming to IEC 60947-2
Mounting mode	fixed
Upside connection	front
Long time pick-up adjustment type Ir	adjustable 9 settings
Long time pick-up adjustment range	160…400 A
Short-time delay adjustment type	fixed
Control type	toggle
Downside connection	front
Thermal memory	yes
Connection pitch	45 mm
Height	255 mm
[Ics] rated service breaking capacity	32 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Depth	110 mm
Width	140 mm
[Isd] short-time pick-up adjustment range	1.5...10 x Ir
[tr] long-time delay adjustment range	200-200 s at 1.5 x Ir, 8-8 s at 6 x Ir, 5.5-5.5 s at 7.2 x Ir
Net weight	4.7 kg
Instantaneous pick-up adjustment type Ii	fixed
Long time delay adjustment type	fixed
Instantaneous pick-up adjustment range	11 x In
Breaking capacity code	N
Mounting support	backplate
Trip unit protection functions	LSoI
Contact position indicator	yes
Connections - terminals	screw connection
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-50-85 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40
Ambient air temperature for operation	-25-70 °C
Electrical shock protection class	class II
Standards	IEC 60947-2, EN 60947-2
Product certifications	GOST, IEC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.262 cm
Package 1 Width	15.794 cm
Package 1 Length	29.215 cm
Package 1 Weight	5.151 kg
Unit Type of Package 2	2
Number of Units in Package 2	3
Package 2 Height	23.0 cm
Package 2 Width	38.3 cm
Package 2 Length	50.8 cm
Package 2 Weight	16.781 kg
Unit Type of Package 3	3
Number of Units in Package 3	48
Package 3 Height	90.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	282840.0 g
