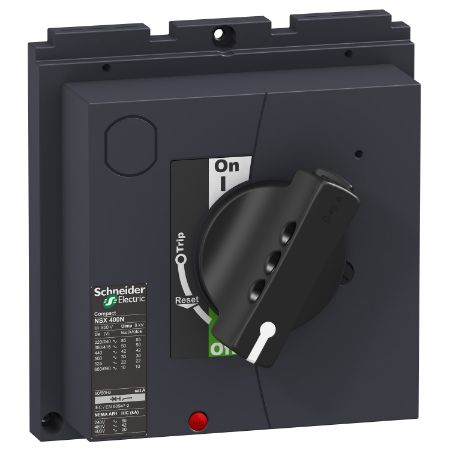

Picture of Direct rotary handle, ComPact NSX 400/630, black handle, IP40
SKU:

LV432597

Direct rotary handle, ComPact NSX 400/630, black handle, IP40

Old price: $312.95 INC GST
$275.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
Direct rotary handle, ComPact NSX 400/630, black handle, IP40
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
User guide
Product Page Link
Product Data Sheet
It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPact NSX400...630
Rotary handle mounting style direct
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Rotary handle mounting location front
Rotary handle padlocking padlock in OFF position, 1 to 3 padlocks
Range compatibility PowerPact PowerPact Multistandard, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPact ComPact NSX630, ComPact ComPact NSX400
Environment
IP degree of protection IP40
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.400 cm
Package 1 Width 15.000 cm
Package 1 Length 15.400 cm
Package 1 Weight 492.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.638 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 47.064 kg
