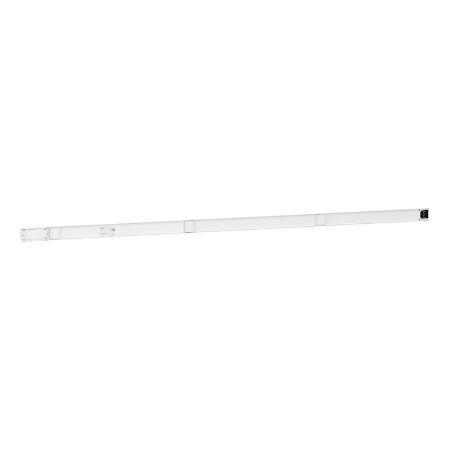

Picture of Straight distribution length, Canalis KN, transmission bus, aluminium, 63A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001
SKU:

KNT63ED4303

Straight distribution length, Canalis KN, transmission bus, aluminium, 63A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

$682.44 INC GST
Available for Shipping : 10-Nov-2025
Straight distribution length, Canalis KN, transmission bus, aluminium, 63A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is a straight distribution length for Canalis KN offer. It is equipped with a built-in transmission BUS. The rated operational current is 63A at 35 ℃. The operational voltage is from 230VAC to 500VAC 50/60Hz. The busbar trunking polarity is 3L+N+PE or 3L+PEN. The length is 3m. It is designed for receiving 3 outlets. The colour is white RAL 9001. All run components are delivered with a jointing unit. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
Device short name KNT
Device application low power distribution
Number of tap-off outlets 3
[Ie] rated operational current 63 A at 35 °C
Busbar trunking polarity 3L + PEN, 3L + N + PE
Range Canalis
Length 3 m
Product name KN
Product or component type straight length
Range of product Canalis
Complementary
[Ipk] rated peak withstand current 11 kA
[Ue] rated operational voltage 230...500 V
Depth 27.5 mm
Width 92 mm
Colour white (RAL 9001)
Neutral position up
Electrical connection lubricated sliding contact
Mounting mode by screws
Thermal stress limit 1980 kA².s
Control type communicating
Maximum voltage drop <0.140 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.155 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.169 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.178 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 5.7 kg
Radiated magnetic field 0.063 µT
Number of circuits 1
[Ui] rated insulation voltage 500 V
Linear resistance 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 5.42 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 0.96 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.78 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 2.85 mΩ/m Rb0 20 °C impedance method Ph/PE, 3.4 mΩ/m Rb0 20 °C impedance method Ph/N, 3.4 mΩ/m Rb0 20 °C impedance method Ph/Ph, 1.68 mΩ/m X0 20 °C symmetrical components method Ph/PE, 5.15 mΩ/m R0 20 °C symmetrical components method Ph/PE, 7.11 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.56 mΩ/m X0 20 °C symmetrical components method Ph/N, 6.93 mΩ/m R0 20 °C symmetrical components method Ph/N, 2.06 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 2.05 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 1.7 mΩ/m R20 20 °C phase conductor, 0.25 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 0.52 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 1.09 mΩ/m 20 °C protective conductor
THDI 33-100 % 40 A, 15-33 % 50 A, 0-15 % 63 A
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 1.4 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 10.000 cm
Package 1 Length 310.000 cm
Package 1 Weight 5.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 11.000 cm
Package 2 Width 16.000 cm
Package 2 Length 314.000 cm
Package 2 Weight 22.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 45.000 cm
Package 3 Width 65.000 cm
Package 3 Length 320.000 cm
Package 3 Weight 281.000 kg
