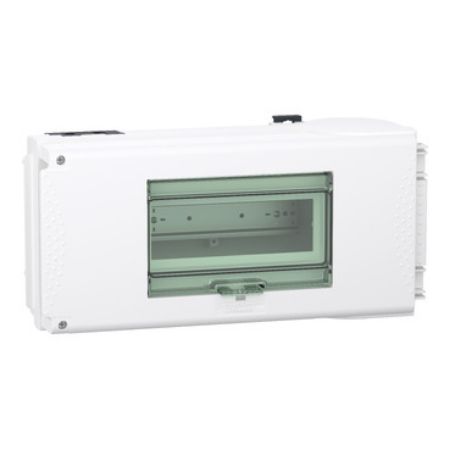

Picture of Tap off unit, Canalis KN, for modular devices, 63A, 3L+N+PE, up to 8 modules of 18mm, IP55
SKU:

KNB63SM48

Tap off unit, Canalis KN, for modular devices, 63A, 3L+N+PE, up to 8 modules of 18mm, IP55

$308.88 INC GST
Available for Shipping : 10-Nov-2025
Tap off unit, Canalis KN, for modular devices, 63A, 3L+N+PE, up to 8 modules of 18mm, IP55
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap off unit for KN. It is compatibility with Canalis KN busbar trunking with plug-in outlets. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 63A. It provides miniature circuit breaker (MCB) protection and 8 modules of 18mm. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by opening the door. Door/cover could be open right side. It is suitable for TT, IT and TN-S earthing system. It provides white RAL 9001 surface treatment. Blanking plate could be provided, but circuit breaker to be ordered separately. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Product compatibility Canalis KN busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 63-63 A
Range compatibility Canalis KN busbar trunking
Protection type circuit breaker: miniature circuit breaker (MCB)
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application low power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 106 mm
Width 344 mm
[Ue] rated operational voltage 230...500 V depending on protective device
Door opening side right
Function available circuit breaker
Electrical connection tunnel terminal - ISO50 25-25 mm² rigid, tunnel terminal - ISO50 25-25 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 1.4 kg
18 mm pitches 8
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 4.6 kV
Provided equipment blanking plate, 8 circuit-breaker to be ordered separately
Door opening size 432.5 mm
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.700 cm
Package 1 Width 16.600 cm
Package 1 Length 34.600 cm
Package 1 Weight 1.566 kg
Unit Type of Package 2 2
Number of Units in Package 2 52
Package 2 Height 60.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 95.432 kg
