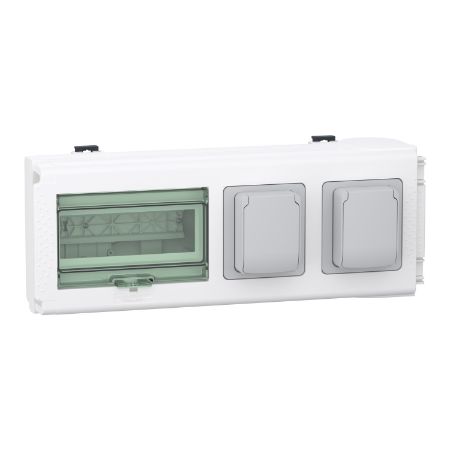

Picture of Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, with 2 Schuko power sockets, IP55
SKU:

KNB32CP11D

Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, with 2 Schuko power sockets, IP55

$420.42 INC GST
Available for Shipping : 19-Nov-2025
Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, with 2 Schuko power sockets, IP55
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This is a 4 poles tap off unit with power sockets for Canalis KN busbar trunking with plug-in outlets. It is used for the supply of portable loads equipped with household or industrial plugs (garage, maintenance workshop, laboratory, battery charging room, etc). This tap off unit accepts up to 8 devices of 18mm width (not provided). The rated operational current is 32A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. It is equipped with 2 Schuko power sockets (10/16A, 2P+T). Tap-off unit cover can be lead sealed to prevent circuit breaker switching by unauthorised persons. It is suitable for TT, IT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate is provided, MCB circuit breaker have to be ordered separately. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
Product compatibility modular device
Colour white (RAL 9001)
Provided equipment socket-outlet, blanking plate
Tap-off unit polarity 3L+N+PE
[Ie] rated operational current 32 A at 35 °C
Range Canalis
Product name KN
Product or component type tap-off unit
Tap-off unit socket description Domestic Schuko10/16A 2P+T230V
Range of product Canalis
Tap-off unit 2nd socket description Domestic Schuko10/16A 2P+T230V
Complementary
Device application low power distribution, power socket distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 141 mm
Width 434 mm
Protection type without protection
[Ue] rated operational voltage 230...500 V depending on protective device
Tap-off unit disconnection mode By drawing out
Net weight 2.9 kg
18 mm pitches 8
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 60439-2, IEC 61439-6
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system IT - tap-off unit, TN-S - tap-off unit, TT - tap-off unit, IT - busbar trunking, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.700 cm
Package 1 Width 16.600 cm
Package 1 Length 43.500 cm
Package 1 Weight 1.710 kg
Unit Type of Package 2 2
Number of Units in Package 2 33
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 82.000 kg
