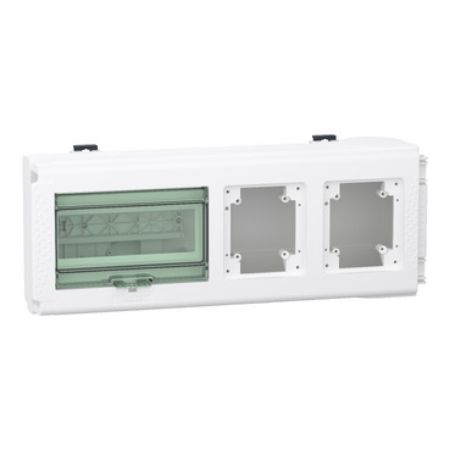

Picture of Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, 2 power sockets not provided, IP55
SKU:

KNB32CP

Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, 2 power sockets not provided, IP55

$192.98 INC GST
Available for Shipping : 10-Nov-2025
Tap off unit, Canalis KN, for modular devices, 32A, 3L+N+PE, up to 8 modules of 18mm, 2 power sockets not provided, IP55
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap off unit for KN. It is compatibility with modular device and applied to power socket distribution and low power distribution. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 32A at 35 ℃. It provides 2 free choice tap-off unit socket. The tap-off unit with phase selection polarity is 3L+N+PE, disconnection by drawing out. It is suitable for TT, IT, TN-C, and TN-S earthing system. Blanking plate could be provided. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both EN/IEC 60439-2 and EN/IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Product compatibility modular device
Colour white (RAL 9001)
Provided equipment blanking plate
Tap-off unit polarity 3L+N+PE
[Ie] rated operational current 32 A at 35 °C
Range Canalis
Product name KN
Product or component type tap-off unit
Tap-off unit socket description free choice
Range of product Canalis
Tap-off unit 2nd socket description free choice
Complementary
Device application power socket distribution, low power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 95 mm
Width 434 mm
Protection type without protection
[Ue] rated operational voltage 230...500 V depending on protective device
Tap-off unit disconnection mode By drawing out
Net weight 2.7 kg
18 mm pitches 8
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6, IEC 60439-2
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system IT - tap-off unit, TN-S - tap-off unit, TT - tap-off unit, IT - busbar trunking, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.600 cm
Package 1 Width 16.600 cm
Package 1 Length 43.500 cm
Package 1 Weight 1.405 kg
Unit Type of Package 2 2
Number of Units in Package 2 46
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 78.700 kg
