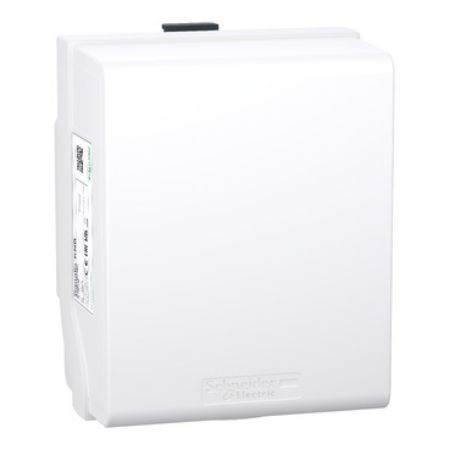

Picture of Tap off unit, Canalis KN, for DIN fuses, 16A, 3L+N+PE, fuses not provided, IP55
SKU:

KNB16CN5

Tap off unit, Canalis KN, for DIN fuses, 16A, 3L+N+PE, fuses not provided, IP55

$208.30 INC GST
Available for Shipping : 19-Nov-2025
Tap off unit, Canalis KN, for DIN fuses, 16A, 3L+N+PE, fuses not provided, IP55
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This is a 4 poles tap off unit with fuse holders for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, TNS and TNC earthing systems. The rated operational current is 16A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. It is be equipped with fuse holders for DIN fuse Neozed E14 type (fuses not supplied). The tap-off unit polarity is 3L+N+PE or 3L + PE, disconnection by drawing out. Tap-off unit cover can be lead sealed to prevent circuit breaker switching by unauthorised persons. It is suitable for TT, TN-S and TN-C earthing system. The colour is white RAL 9001. Cable clamp is supplied. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: Neozed fuse, size E14 conforming to DIN
Colour white (RAL 9001)
Tap-off unit polarity 3L+PE, 3L+N+PE
Product compatibility Canalis KN busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 16-16 A at 35 °C
Range compatibility Canalis KN busbar trunking
Provided equipment cable clamp,  fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application low power distribution
[Ui] rated insulation voltage 500 V depending on protective device
Depth 90 mm
Width 135 mm
[Ue] rated operational voltage 230...500 V depending on protective device
Door opening side front
Function available fuse isolator
Electrical connection cable clamp terminal - ISO32 6-6 mm² rigid, cable clamp terminal - ISO32 4-4 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 0.6 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 4.6 kV
Height 165 mm
Network frequency 50/60 Hz
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.600 cm
Package 1 Width 16.600 cm
Package 1 Length 13.600 cm
Package 1 Weight 848.000 g
Unit Type of Package 2 2
Number of Units in Package 2 144
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 137.112 kg
