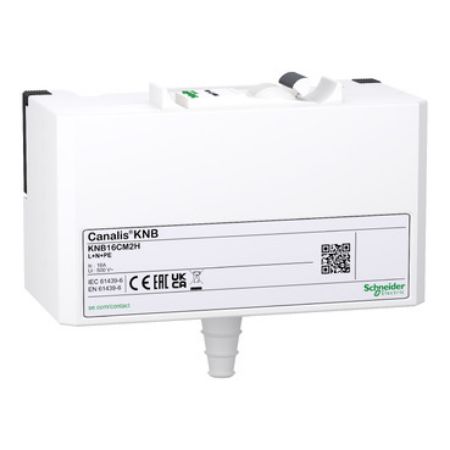

Picture of Tap off unit, Canalis KN, for modular devices, single phase, 16A, L+N+PE, equipped with 1 Acti9 iC60H MCB, IP41
SKU:

KNB16CM2H

Tap off unit, Canalis KN, for modular devices, single phase, 16A, L+N+PE, equipped with 1 Acti9 iC60H MCB, IP41

$257.93 INC GST
Available for Shipping : 20-Nov-2025
Tap off unit, Canalis KN, for modular devices, single phase, 16A, L+N+PE, equipped with 1 Acti9 iC60H MCB, IP41
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This is a single phase tap off unit for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, TNS and TNC earthing systems. It is equipped with a phase selection system (L1, L2 or L3 + N + PE). The rated operational current is 16A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. It is equipped with a single pole iC60 circuit breaker curve H. The tap-off unit polarity is L+N+PE, disconnection by drawing out. It is suitable for TT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate and MCB circuit breaker are provided. It provides IP41 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity L+N+PE
Product compatibility Canalis KN busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 16-16 A
Range compatibility Canalis KN busbar trunking
Protection type circuit breaker: iC60H
Range of product Canalis
Mounting mode plug-in with phase selection
Complementary
Device application low power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 70 mm
Width 79 mm
[Ue] rated operational voltage 230...500 V depending on protective device
Door opening side front
Function available circuit breaker
Electrical connection cable clamp terminal 6-6 mm² rigid, cable clamp terminal 4-4 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 0.34 kg
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 4.6 kV
Provided equipment cable clamp, 1 circuit-breaker
Height 172 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-S, TT
IP degree of protection IP41 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.000 cm
Package 1 Length 13.500 cm
Package 1 Weight 342.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.524 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 48.192 kg
