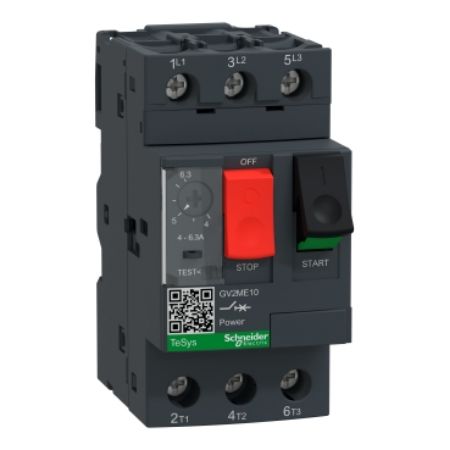

Picture of TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
Picture of TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
Picture of TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
Picture of TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
Picture of TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
SKU:

GV2ME10

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

Old price: $246.95 INC GST
$155.58 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
TeSys Deca Motor Circuit Breaker
  • Modern look and feel for all machines.
  • Wide range of GVs: magnetic, thermal magnetic, and different sizes (GV2, GV3, GV4).
  • Simplified installation and operation with multi-standard screws.
  • Sturdy and durable power connections using EverLink terminals.
  • Digital access to technical documents for enhanced customer experience.
  • Maintenance guide provided via EcoStruxure™ Facility Expert.
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
CAD
Circularity Profile
Environmental Disclosure
Instruction sheet
Catalog
User guide
Product Page Link
Product Data Sheet

The TeSys GV motor circuit breaker (GV2ME10) is a 3-pole device rated at 6.3A and 690V. It is suitable for 3-phase motors up to 2.2kW at 400V. The breaker offers thermal-magnetic protection, adjustable between 4-6.3A, with magnetic tripping set at 13 times the rated current. It has a strong breaking capacity of 100kA at 400V.

It connects using screw clamp terminals and includes start-stop push buttons, designed to last for 100,000 cycles. This circuit breaker is certified for many standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and is eco-friendly, meeting RoHS and REACh guidelines.
