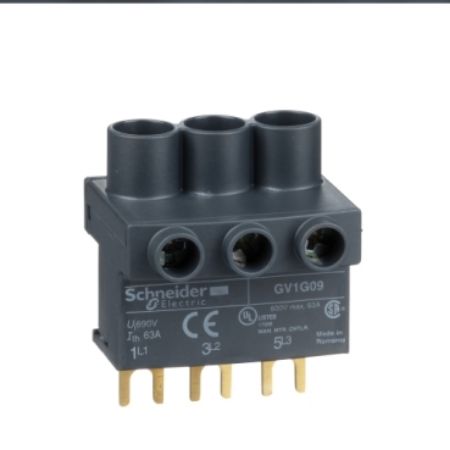

Picture of Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets
SKU:

GV1G09

Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets

Old price: $87.56 INC GST
$55.16 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
Catalog
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be inserted directly on the top terminals of the devices connected by the busbar sets. Connection to the supply cable by screw connectors. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV1G
Range compatibility TeSys LS1, TeSys U, TeSys Deca, TeSys GV2
Poles description 3P
Range Linergy
Product name FT
Product or component type terminal block
Accessory / separate part category connection accessory
Range of product TeSys Deca, TeSys U, TeSys GV2
Complementary
Tightening torque 2.2-2.2 N.m - on connector, 1.7-1.7 N.m - on screw clamp terminals
Compatibility code GV1G
[Ie] rated operational current 63 A
[Ui] rated insulation voltage 690 V conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Mounting location top
Net weight 0.04 kg
Connections - terminals screw clamp terminals 1 flexible AWG 4, screw clamp terminals 2 cable(s) 1.5-4 mm² flexible without cable end, screw clamp terminals 2 cable(s) 1.5-6 mm² solid, screw clamp terminals 2 cable(s) 1.5-4 mm² flexible with cable end, screw clamp terminals 1 cable(s) 1.5-25 mm² solid, screw clamp terminals 1 cable(s) 1.5-16 mm² flexible without cable end, screw clamp terminals 1 cable(s) 1.5-16 mm² flexible with cable end, screw clamp terminals 1 solid AWG 4
Environment
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 6.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 49.000 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.706 kg
Unit Type of Package 3 3
Number of Units in Package 3 1120
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 69.540 kg
