MX9R1120

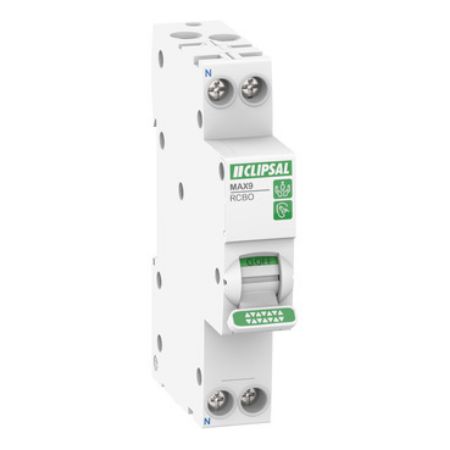

Clipsal MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 1PN, 20A, 10mA, C Curve, 6000A, A Type, SLIM

$157.08 INC GST

Qty:

Available for Shipping : 25-Aug-2025

Clipsal MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 1PN, 20A, 10mA, C Curve, 6000A, A Type, SLIM

Be the first to review this product

Manufacturer: Clipsal

Instruction sheet

Environmental Disclosure

Product Page Link

Product Data Sheet

This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz or 60Hz. The earth leakage protection class is type A with a sensitivity of 10mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A at 240VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 93mm x (D) 73mm. The product color is white (RAL9003). The product weight is 136g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.

Products specifications

Attribute name	Attribute value
Main
[Ue] rated operational voltage	240 V AC 50/60 Hz
Poles description	1P + N
Range	MAX9
Product or component type	residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity	10 mA
Earth-leakage protection class	type A
Network type	AC
Number of protected poles	1
Curve code	C
[In] rated current	20 A at 30 °C conforming to AS/NZS 61009.1
Network frequency	50/60 Hz
Complementary
Depth	73 mm
Width	18 mm
[Uimp] rated impulse withstand voltage	4 kV
Grid distance	45 mm
Breaking capacity	6000 A Icn at 240 V AC 50/60 Hz
[Ui] rated insulation voltage	440 V AC 50/60 Hz
Earth-leakage protection time delay	instantaneous
Net weight	136 g
Connections - terminals	tunnel type terminal (bottom) - 1...6 mm² - flexible, tunnel type terminal (bottom) - 1...10 mm² - rigid, tunnel type terminal (top) - 1...10 mm² - flexible, tunnel type terminal (top) - 1...16 mm² - rigid
Comb busbar and distribution block compatibility	YES
Limitation class	3
9 mm pitches	2
Temperature derating table	70 °C ( 16.7 A ) , 65 °C ( 17.2 A ) , 60 °C ( 17.6 A ) , 55 °C ( 18 A ) , 50 °C ( 18.4 A ) , 45 °C ( 18.8 A ) , 40 °C ( 19.2 A ) , 35 °C ( 19.6 A ) , 30 °C ( 20 A ) , 25 °C ( 20.4 A ) , 20 °C ( 20.7 A ) , 15 °C ( 21.1 A ) , 10 °C ( 21.5 A ) , 5 °C ( 21.8 A ) , 0 °C ( 22.1 A ) , -5 °C ( 22.5 A ) , -10 °C ( 22.8 A ) , -15 °C ( 23.1 A ) , -20 °C ( 23.5 A ) , -25 °C ( 23.8 A )
Height	93 mm
Environment
Quality labels	RCM
Overvoltage category	III
Pollution degree	2
IP degree of protection	IP20
Standards	AS/NZS 61009.1, EN/IEC 61009-1, IEC 61009-2-2
Ambient air temperature for operation	-25-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.4 cm
Package 1 Width	9.8 cm
Package 1 Length	7.4 cm
Package 1 Weight	141 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.6 cm
Package 2 Width	24.4 cm
Package 2 Length	10.3 cm
Package 2 Weight	1.692 kg
