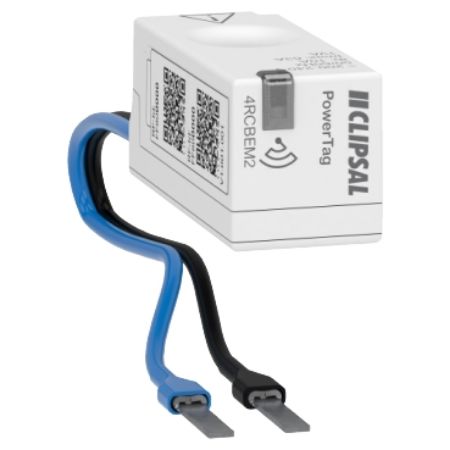

Picture of Powertag, Wiser Energy Flex 1P+N 63A
SKU:

4RCBEM2

Powertag, Wiser Energy Flex 1P+N 63A

$204.60 INC GST
Available for Shipping : 27-Jul-2025
Powertag, Wiser Energy Flex 1P+N 63A
Be the first to review this product
Manufacturer: Clipsal
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Accuracy class class 1 active energy conforming to IEC 61557-12, class 0.5 voltage conforming to IEC 61557-12, class 1 current conforming to IEC 61557-12
Concentrator compatibility Wiser IP module
Poles description 1P + N
Product specific application energy management, energy production monitoring (photovoltaic), overload alarm, circuit monitoring, load monitoring
Transmission support medium radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4
Mounting location top or bottom
Range PowerLogic
Event management voltage loss with measured current at voltage loss
Product destination switchboard
Product name PowerTag Wiser F63
Market segment residential: overload alarm, residential: breaker voltage monitoring
Max current 63 A
Product or component type energy sensor
Emission power 10 mW
Type of measurement active energy, voltage, current
Mounting support on circuit breaker
Range compatibility Resi MAX & MAX4
Product brand Clipsal
Complementary
Colour white (RAL 9003)
Cable composition 1 x 0.33 mm²
Electrical connection wires with cable end
Cable cross section 1 stranded cable 1.5-16 mm², 2 rigid cable 1.5-2.5 mm², 2 stranded cable 1.5-2.5 mm², 1 rigid cable 1.5-16 mm²
Width sensor element: 18 mm
Height sensor element: 20 mm
Power consumption in VA 1 VA
Net weight 16 g
Depth sensor element: 44.5 mm
Form factor flex
Standards ETSI EN 301 487-1, ETSI EN 300 328, IEC 61326-1, IEC 61010-2-030, IEC 61010-1, IEC 61557-12
[Ue] rated operational voltage 200...240 V AC, +/- 20 %
Network frequency 60 Hz, 50 Hz
Mounting mode by screws (terminals)
Cable length 0.25 m
Environment
Operating altitude 0...2000 m
Measurement category category III conforming to IEC 61010-2-030
Relative humidity 0-95 % at 45-45 °C conforming to IEC 60721-3-3
Quality labels CE
Overvoltage category III conforming to IEC 61010-1
Ambient air temperature for storage -40-85 °C
Directives 2014/53/EU - radio equipment directive
Pollution degree 3
Vibration resistance 3M4 conforming to IEC 60721-3-3
Electromagnetic compatibility electromagnetic emission conforming to IEC 62311, radiated EMC conforming to ETSI EN 301 489-17, residential electromagnetic environment conforming to IEC 61326-1
IP degree of protection IP20 conforming to IEC 60529
Environmental characteristic indoor use, salt mist class 3C2 conforming to IEC 60721-3-3, dustproof class 3S3 conforming to IEC 60721-3-3
Ambient air temperature for operation -25-60 °C
IK degree of protection IK05
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 7.500 cm
Package 1 Length 8.000 cm
Package 1 Weight 46.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.739 kg

Related products

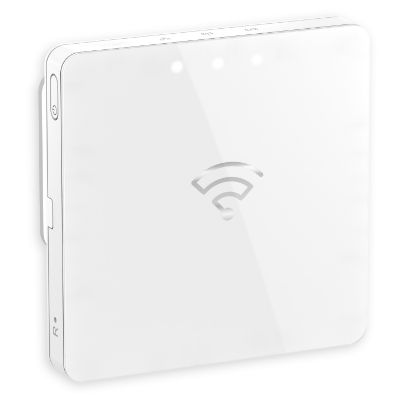

Picture of Clipsal Wiser, Hub Zigbee to IP Network, White
