SKU:

BSH1002P31A2A

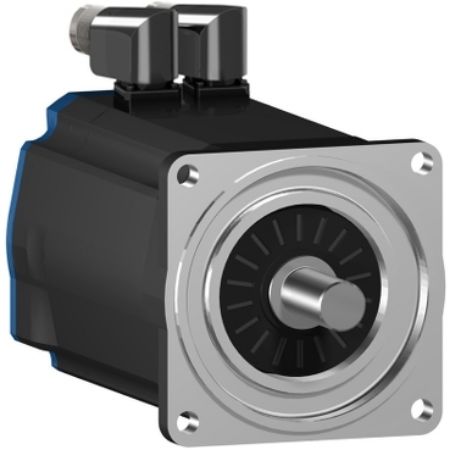

servo motor BSH, Lexium 05, 3.4N.m, 2500rpm, 100mm, keyed shaft, Sincos single turn, without brake, IP65

$2,716.56 INC GST

Qty:

Available for Shipping : 02-Sep-2025

Product Selector

servo motor BSH, Lexium 05, 3.4N.m, 2500rpm, 100mm, keyed shaft, Sincos single turn, without brake, IP65

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

User guide

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 6000RPM and IP65 smooth shaft without holding brake. It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 4.8A and a maximum continuous power of 2.51W. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with IP67 kit) rated product. Its dimensions are 204.5mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 5.9kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BSH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	5.5 N.m for LXM05AD17M3X, 200...240 V, three phase, 5.8 N.m for LXM15LD21M3, 230 V, three phase, 5.8 N.m for LXM15LD17N4, 480 V, three phase, 5.8 N.m for LXM15LD17N4, 400 V, three phase, 3.4 N.m for LXM15LD10N4, 480 V, three phase, 3.4 N.m for LXM15LD10N4, 400 V, three phase, 3.4 N.m for LXM15LD10N4, 230 V, three phase, 3.4 N.m for LXM15LD13M3, 230 V, three phase, 5.8 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 5.8 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 5.5 N.m for LXM05CD28M2, 200...240 V, single phase, 5.5 N.m for LXM05CD22N4, 380...480 V, three phase, 5.5 N.m for LXM05CD17M3X, 200...240 V, three phase, 5.5 N.m for LXM05BD28M2, 200...240 V, single phase, 5.5 N.m for LXM05BD22N4, 380...480 V, three phase, 5.5 N.m for LXM05BD17M3X, 200...240 V, three phase, 5.5 N.m for LXM05AD28M2, 200...240 V, single phase, 5.5 N.m for LXM05AD22N4, 380...480 V, three phase, 4.5 N.m for LXM15LD21M3, 230 V, single phase
Device short name	BSH
Nominal speed	4000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase, 6000 rpm for LXM15LD10N4, 480 V, three phase, 4500 rpm for LXM15LD10N4, 400 V, three phase, 1500 rpm for LXM05CD17M3X, 200...240 V, three phase, 1500 rpm for LXM05BD17M3X, 200...240 V, three phase, 1500 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD22N4, 380...480 V, three phase, 3000 rpm for LXM05BD22N4, 380...480 V, three phase, 5000 rpm for LXM15LD17N4, 480 V, three phase, 4000 rpm for LXM15LD17N4, 400 V, three phase, 2500 rpm for LXM15LD13M3, 230 V, three phase, 2500 rpm for LXM15LD10N4, 230 V, three phase, 2000 rpm for LXM15LD21M3, 230 V, three phase, 2000 rpm for LXM15LD21M3, 230 V, single phase, 1500 rpm for LXM05CD28M2, 200...240 V, single phase, 1500 rpm for LXM05BD28M2, 200...240 V, single phase, 1500 rpm for LXM05AD28M2, 200...240 V, single phase, 4000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase, 3000 rpm for LXM05AD22N4, 380...480 V, three phase
IP degree of protection	IP67 with IP67 kit, IP65 standard
Product compatibility	LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM15LD10N4 at 400 V three phase, LXM15LD13M3 at 230 V three phase, LXM15LD21M3 at 230 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM32.D18N4 at 480 V three phase, LXM32.D18N4 at 400 V three phase, LXM15LD17N4 at 480 V three phase, LXM15LD17N4 at 400 V three phase, LXM05CD22N4 at 380...480 V three phase, LXM05BD22N4 at 380...480 V three phase, LXM05AD22N4 at 380...480 V three phase, LXM15LD21M3 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM05AD28M2 at 200...240 V single phase
Peak stall torque	11.23 N.m for LXM05AD17M3X, 200...240 V, three phase, 14.79 N.m for LXM15LD21M3, 230 V, three phase, 12.13 N.m for LXM15LD17N4, 480 V, three phase, 12.13 N.m for LXM15LD17N4, 400 V, three phase, 8 N.m for LXM15LD10N4, 480 V, three phase, 8 N.m for LXM15LD10N4, 400 V, three phase, 8 N.m for LXM15LD10N4, 230 V, three phase, 5.6 N.m for LXM15LD13M3, 230 V, three phase, 18.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 18.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 16 N.m for LXM05CD28M2, 200...240 V, single phase, 13.92 N.m for LXM05CD22N4, 380...480 V, three phase, 11.23 N.m for LXM05CD17M3X, 200...240 V, three phase, 16 N.m for LXM05BD28M2, 200...240 V, single phase, 13.92 N.m for LXM05BD22N4, 380...480 V, three phase, 11.23 N.m for LXM05BD17M3X, 200...240 V, three phase, 16 N.m for LXM05AD28M2, 200...240 V, single phase, 13.92 N.m for LXM05AD22N4, 380...480 V, three phase, 9.39 N.m for LXM15LD21M3, 230 V, single phase
Nominal output power	1600 W for LXM15LD10N4, 400 V, three phase, 1400 W for LXM05CD22N4, 380...480 V, three phase, 1400 W for LXM05BD22N4, 380...480 V, three phase, 1400 W for LXM05AD22N4, 380...480 V, three phase, 780 W for LXM05CD28M2, 200...240 V, single phase, 780 W for LXM05BD28M2, 200...240 V, single phase, 780 W for LXM05AD28M2, 200...240 V, single phase, 950 W for LXM15LD21M3, 230 V, three phase, 1700 W for LXM32.D18N4 at 6 A, 480 V, three phase, 1700 W for LXM32.D18N4 at 6 A, 400 V, three phase, 890 W for LXM15LD10N4, 230 V, three phase, 840 W for LXM15LD13M3, 230 V, three phase, 780 W for LXM05CD17M3X, 200...240 V, three phase, 780 W for LXM05BD17M3X, 200...240 V, three phase, 780 W for LXM05AD17M3X, 200...240 V, three phase, 2150 W for LXM15LD10N4, 480 V, three phase, 1950 W for LXM15LD17N4, 480 V, three phase, 1700 W for LXM15LD17N4, 400 V, three phase, 950 W for LXM15LD21M3, 230 V, single phase
Speed feedback resolution	131072 points/turn
Maximum mechanical speed	6000 rpm
Nominal torque	3.7 N.m for LXM15LD17N4, 480 V, three phase, 3.4 N.m for LXM15LD13M3, 230 V, three phase, 3.4 N.m for LXM15LD10N4, 480 V, three phase, 3.4 N.m for LXM15LD10N4, 400 V, three phase, 3.4 N.m for LXM15LD10N4, 230 V, three phase, 4.96 N.m for LXM05CD28M2, 200...240 V, single phase, 4.96 N.m for LXM05BD28M2, 200...240 V, single phase, 4.96 N.m for LXM05AD28M2, 200...240 V, single phase, 4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 5.8 N.m for LXM15LD21M3, 230 V, three phase, 4.96 N.m for LXM05CD17M3X, 200...240 V, three phase, 4.96 N.m for LXM05BD17M3X, 200...240 V, three phase, 4.96 N.m for LXM05AD17M3X, 200...240 V, three phase, 4.4 N.m for LXM05CD22N4, 380...480 V, three phase, 4.4 N.m for LXM05BD22N4, 380...480 V, three phase, 4.4 N.m for LXM05AD22N4, 380...480 V, three phase, 4 N.m for LXM15LD17N4, 400 V, three phase, 4.5 N.m for LXM15LD21M3, 230 V, single phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	without
Mounting support	international standard flange
Complementary
Temperature copper hot	120 °C
Coefficient 1_2	1.4448273123873E-17 N.m/rpm²
Coefficient 1_1	-0.000300000000007755 N.m/rpm
Coefficient 1_4	3.157607E-24 N.m/rpm4
Coefficient 1_3	-9.992462566E-21 N.m/rpm3
Coefficient 1_6	0 N.m/rpm6
Coefficient 1_5	-4.62E-28 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	100 mm
Stator inductance	12.7 mH at 20 °C
Centring collar depth	3.5 mm
Back emf constant	77 V/krpm at 120 °C
Maximum radial force Fr	990 N at 1000 rpm, 790 N at 2000 rpm, 690 N at 3000 rpm, 620 N at 4000 rpm
Saturation coefficient 1	-1.905005837384E-18
Saturation coefficient 3	5.0320908912E-20
Saturation coefficient 2	-0.00528802400060543
Switching frequency	8 kHz
Temperature magnet hot	100 °C
Continuous power	2.51 W
Circle diameter of the mounting holes	115 mm
Maximum permanent current	17.1 A
Torque constant	1.21 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	4.8 A
Range compatibility	Lexium 05, Lexium 15, Lexium 32
Stator resistance	2.4 Ohm at 20 °C
Feedback type	single turn SinCos Hiperface
Mounting holes diameter	9 mm
Shaft diameter	19 mm
Key width	30 mm
Centring collar diameter	95 mm
Sizing reference	BSH1002P
Net weight	5.9 kg
Maximum current Irms	17.1 A for LXM05BD17M3X, 17.1 A for LXM05BD28M2, 17.1 A for LXM05AD22N4, 17.1 A for LXM05AD17M3X, 17.1 A for LXM05AD28M2, 17.1 A for LXM15LD17N4, 17.1 A for LXM15LD10N4, 17.1 A for LXM15LD21M3, 17.1 A for LXM32.D18N4, 17.1 A for LXM05CD22N4, 17.1 A for LXM05CD17M3X, 17.1 A for LXM05CD28M2, 17.1 A for LXM05BD22N4, 17.1 A for LXM15LD13M3
Length	204.5 mm
Shaft length	40 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	8
Rotor inertia	2.31 kg.cm²
Number of motor stacks	2
Stator electrical time constant	5.29 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	20.0 cm
Package 1 Width	22.0 cm
Package 1 Length	40.0 cm
Package 1 Weight	6.878 kg
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	77.0 cm
Package 2 Width	80.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	91.036 kg
