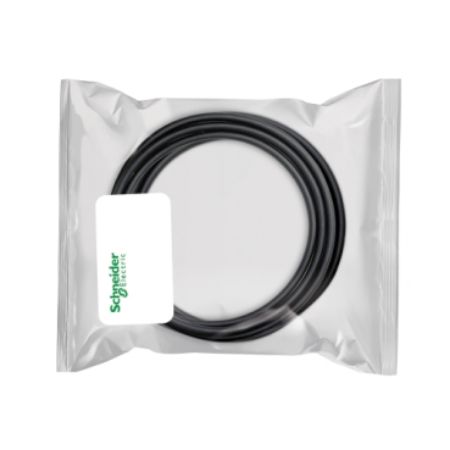

Picture of SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 15m
SKU:

VW3M8102R150

SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 15m

$623.04 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 15m
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This control cable is an accessory of encoder. The length of this cable is 15m. It is furnished with M23 connector, RJ45 connector for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It is used to connect from servo motor to servo drive. It weighs 1.1kg. This product is compatible with Lexium 32 SinCos Hiperface encoder.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination from servo motor to servo drive
Accessory / separate part type control cable
Cable composition 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
Product or component type SinCos Hiperface encoder cable
Accessory / separate part category connection accessory
Range of product Lexium
Complementary
Range compatibility Lexium 32
Electrical connection 1 connector RJ45, 1 connector M23
Net weight 1.1 kg
Cable length 15 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 27.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 965.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 12.364 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 63.236 kg
