SKU:

BSH0553T11A1A

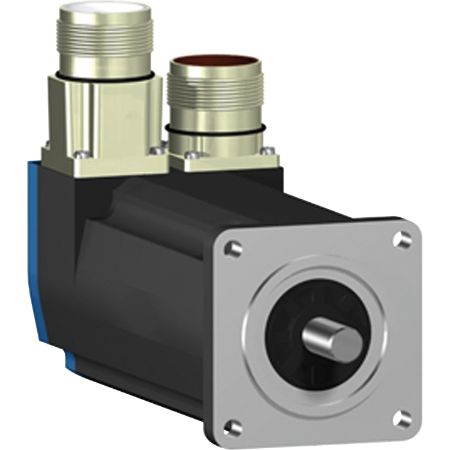

servo motor BSH, Lexium 05, 1.3N.m, 3000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight

$2,217.60 INC GST

Qty:

Available for Shipping : 02-Sep-2025

Product Selector

servo motor BSH, Lexium 05, 1.3N.m, 3000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

User guide

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	1.3 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.2 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.3 N.m for LXM05CD17M2, 200...240 V, single phase, 1.3 N.m for LXM05CD17F1, 110...120 V, single phase, 1.3 N.m for LXM05BD17M2, 200...240 V, single phase, 1.3 N.m for LXM05BD17F1, 110...120 V, single phase, 1.3 N.m for LXM05AD17M2, 200...240 V, single phase, 1.3 N.m for LXM05AD17F1, 110...120 V, single phase, 1.3 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.3 N.m for LXM05BD17M3X, 200...240 V, three phase, 1.2 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Device short name	BSH
Nominal speed	3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM32.D18M2 at 6 A, 115 V, single phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD17F1, 110...120 V, single phase, 3000 rpm for LXM05BD17F1, 110...120 V, single phase, 3000 rpm for LXM05AD17F1, 110...120 V, single phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 6000 rpm for LXM32.U90M2 at 3 A, 230 V, single phase
IP degree of protection	IP50 standard
Product compatibility	LXM05AD17M3X at 200...240 V three phase, LXM32.D18M2 at 115 V single phase, LXM32.U90M2 at 230 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05CD17F1 at 110...120 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05BD17F1 at 110...120 V single phase, LXM05AD17M2 at 200...240 V single phase, LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17F1 at 110...120 V single phase
Peak stall torque	3.31 N.m for LXM05AD17M3X, 200...240 V, three phase, 3.3 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 3.31 N.m for LXM05CD17M2, 200...240 V, single phase, 3.31 N.m for LXM05CD17F1, 110...120 V, single phase, 3.31 N.m for LXM05BD17M2, 200...240 V, single phase, 3.31 N.m for LXM05BD17F1, 110...120 V, single phase, 3.31 N.m for LXM05AD17M2, 200...240 V, single phase, 3.31 N.m for LXM05AD17F1, 110...120 V, single phase, 3.31 N.m for LXM05CD17M3X, 200...240 V, three phase, 3.31 N.m for LXM05BD17M3X, 200...240 V, three phase, 3 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Nominal output power	350 W for LXM05AD17M3X, 200...240 V, three phase, 350 W for LXM32.D18M2 at 6 A, 115 V, single phase, 350 W for LXM05CD17M2, 200...240 V, single phase, 350 W for LXM05CD17F1, 110...120 V, single phase, 350 W for LXM05BD17M2, 200...240 V, single phase, 350 W for LXM05BD17F1, 110...120 V, single phase, 350 W for LXM05AD17M2, 200...240 V, single phase, 350 W for LXM05AD17F1, 110...120 V, single phase, 350 W for LXM05CD17M3X, 200...240 V, three phase, 350 W for LXM05BD17M3X, 200...240 V, three phase, 550 W for LXM32.U90M2 at 3 A, 230 V, single phase
Speed feedback resolution	131072 points/turn
Maximum mechanical speed	9000 rpm
Nominal torque	1.1 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.14 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.1 N.m for LXM05CD17M2, 200...240 V, single phase, 1.1 N.m for LXM05CD17F1, 110...120 V, single phase, 1.1 N.m for LXM05BD17M2, 200...240 V, single phase, 1.1 N.m for LXM05BD17F1, 110...120 V, single phase, 1.1 N.m for LXM05AD17M2, 200...240 V, single phase, 1.1 N.m for LXM05AD17F1, 110...120 V, single phase, 1.1 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.1 N.m for LXM05BD17M3X, 200...240 V, three phase, 0.84 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Electrical connection	straight connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	without
Mounting support	international standard flange
Complementary
Temperature copper hot	120 °C
Coefficient 1_2	-2.567453870888E-18 N.m/rpm²
Coefficient 1_1	-1.87500000003E-05 N.m/rpm
Coefficient 1_4	-2.5023E-25 N.m/rpm4
Coefficient 1_3	1.186198773E-21 N.m/rpm3
Coefficient 1_6	0 N.m/rpm6
Coefficient 1_5	2.4E-29 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	55 mm
Stator inductance	7.4 mH at 20 °C
Centring collar depth	2 mm
Back emf constant	22 V/krpm at 120 °C
Maximum radial force Fr	390 N at 1000 rpm, 310 N at 2000 rpm, 270 N at 3000 rpm, 240 N at 4000 rpm, 230 N at 5000 rpm, 210 N at 6000 rpm, 200 N at 7000 rpm, 190 N at 8000 rpm
Saturation coefficient 1	-2.559177653241E-18
Saturation coefficient 3	1.43774025462E-19
Saturation coefficient 2	-0.0112504371592276
Switching frequency	8 kHz
Temperature magnet hot	100 °C
Continuous power	0.97 W
Circle diameter of the mounting holes	63 mm
Maximum permanent current	11.9 A
Torque constant	0.39 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	3.1 A
Range compatibility	Lexium 05, Lexium 32
Stator resistance	3.1 Ohm at 20 °C
Feedback type	single turn SinCos Hiperface
Mounting holes diameter	5.5 mm
Shaft diameter	9 mm
Key width	12 mm
Centring collar diameter	40 mm
Sizing reference	BSH0553T
Net weight	1.76 kg
Maximum current Irms	11.9 A for LXM05CD17M3X, 11.9 A for LXM05CD17M2, 11.9 A for LXM05CD17F1, 11.9 A for LXM05BD17M3X, 11.9 A for LXM05BD17M2, 11.9 A for LXM05BD17F1, 11.9 A for LXM05AD17M3X, 11.9 A for LXM05AD17M2, 9 A for LXM32.U90M2, 10 A for LXM32.D18M2, 11.9 A for LXM05AD17F1
Length	176.5 mm
Shaft length	20 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	6
Rotor inertia	0.134 kg.cm²
Number of motor stacks	3
Stator electrical time constant	2.39 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.3 cm
Package 1 Width	12.8 cm
Package 1 Length	37.7 cm
Package 1 Weight	1.4 kg
