SKU:

BMXAMO0210H

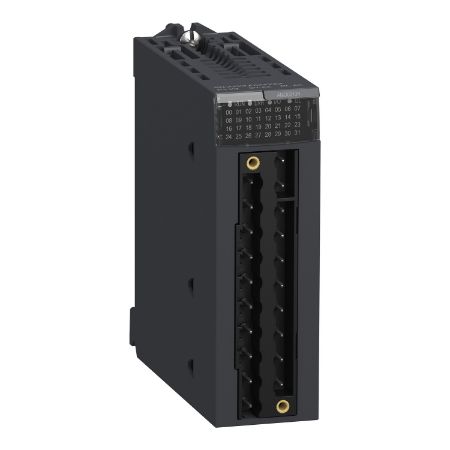

isolated analog output module X80 - 2 outputs - severe

$1,867.14 INC GST
Available for Shipping : 27-Aug-2025
Product Selector
isolated analog output module X80 - 2 outputs - severe
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 2 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1301835 hours of MTBF. This analog module has a weight of 0.144kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Input output isolation isolated
Electrical connection 20 ways 1 connector
Product or component type analog output module
Range of product Modicon X80
Complementary
Conversion time <= 1 ms
Analogue output resolution 15 bits + sign
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Detection type short circuit +/- 10 V, open circuit 4...20 mA, open circuit 0...20 mA
Load impedance ohmic >= 1000 Ohm +/- 10 V, <= 600 Ohm 4...20 mA, <= 600 Ohm 0...20 mA
Power consumption in W 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 2.8 W 24 V DC maximum, 2.1 W 24 V DC typical
Analogue output number 2
Isolation voltage 750 V DC between channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground
Net weight 0.144 kg
Minimum crosstalk attenuation 90 dB
Supply internal power supply via rack
Output level high level
Common mode rejection 100 dB
Analogue output type voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA
Recalibration factory calibrated
Temperature drift 30 ppm/°C
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Maximum conversion value 0...24 mA 4...20 mA, 0...24 mA 0...20 mA, +/- 11.25 V +/- 10 V
Measurement error <= 0.45 % of full scale - 25...70 °C, 0.1 % of full scale 25 °C
Fallback mode predefined, configurable
MTBF reliability 1300000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic hazardous location, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation -25-70 °C
Product certifications IEC-Ex, ATEX, UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 183.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.063 kg

Related products

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
