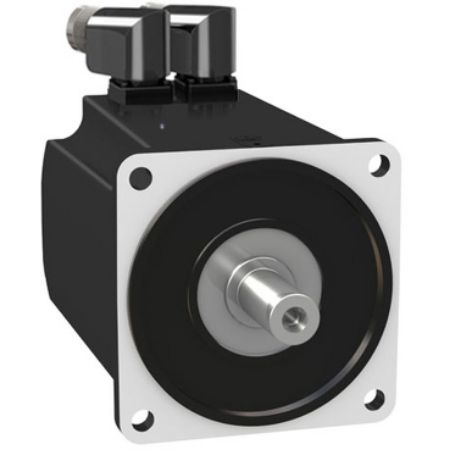

Picture of servo motor BMH, Lexium 32, 24Nm, 4000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder, 3 phases
SKU:

BMH1403P12F2A

servo motor BMH, Lexium 32, 24Nm, 4000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder, 3 phases

$6,956.40 INC GST
Available for Shipping : 02-Sep-2025
Product Selector
servo motor BMH, Lexium 32, 24Nm, 4000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder, 3 phases
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 18A and a continuous power of 4.8W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 267mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 18.5kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Device short name BMH
Nominal speed 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase, 3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase
IP degree of protection IP54 standard
Product compatibility LXM32.D72N4 at 400...480 V three phase
Peak stall torque 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Nominal output power 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase, 4700 W for LXM32.D72N4 at 24 A, 400 V, three phase
Speed feedback resolution 131072 points/turn x 4096 turns
Maximum mechanical speed 4000 rpm
Nominal torque 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake with
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Coefficient 1_2 8.89155014038471E-08 N.m/rpm²
Coefficient 1_1 -0.0033028347467463 N.m/rpm
Coefficient 1_4 6.35477271688575E-14 N.m/rpm4
Coefficient 1_3 -1.16274809024325E-10 N.m/rpm3
Coefficient 1_6 1.22533440100654E-21 N.m/rpm6
Coefficient 1_5 -1.47040128121779E-17 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Coefficient 2_1 0.000300007246376836 N.m/rpm
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 140 mm
Stator inductance 3 mH at 20 °C
Brake pull-in power 19 W
Centring collar depth 3.5 mm
Back emf constant 85.9 V/krpm at 120 °C
Maximum radial force Fr 1680 N at 3000 rpm, 1920 N at 2000 rpm, 2420 N at 1000 rpm
Saturation coefficient 1 1.27815108636E-17
Saturation coefficient 3 -6.613605171E-19
Saturation coefficient 2 -0.00737997957099081
Temperature magnet hot 100 °C
Continuous power 4.8 W
Circle diameter of the mounting holes 165 mm
Maximum permanent current 62.3 A
Torque constant 1.34 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 18 A
Range compatibility Lexium 32
Stator resistance 0.22 Ohm at 20 °C
Feedback type multiturn SinCos Hiperface
Mounting holes diameter 11 mm
Shaft diameter 24 mm
Key width 40 mm
Centring collar diameter 130 mm
Sizing reference BMH1403P
Net weight 18.5 kg
Maximum current Irms 62.3 A for LXM32.D72N4
Length 267 mm
Shaft length 50 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 50.27 kg.cm²
Number of motor stacks 3
Holding torque 23 N.m holding brake
Stator electrical time constant 13.6 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 20.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 18.83 kg
