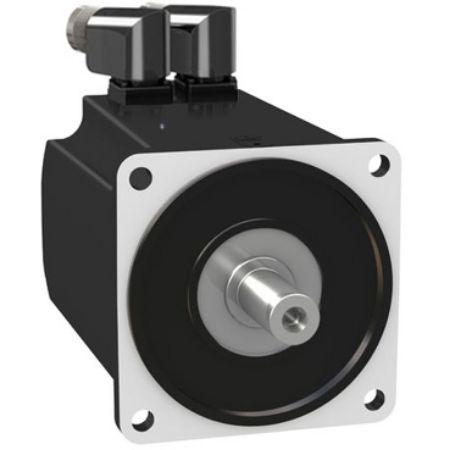

Picture of servo motor BMH, Lexium 32, 18.5Nm, 4000rpm, untapped shaft, without brake, IP54, 16bit encoder
SKU:

BMH1402P06A2A

servo motor BMH, Lexium 32, 18.5Nm, 4000rpm, untapped shaft, without brake, IP54, 16bit encoder

$4,237.20 INC GST
Available for Shipping : 02-Sep-2025
Product Selector
servo motor BMH, Lexium 32, 18.5Nm, 4000rpm, untapped shaft, without brake, IP54, 16bit encoder
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 4000RPM, an untapped shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 16.83A, a continuous power of 4.44W, and a continuous stall torque of 18.5Nm. Its degree of protection is IP54 rated. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 12kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD72N4, LXM32SD72N4, LXM32MD72N4, and LXM32CD72N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 18.5 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 18.5 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Device short name BMH
Nominal speed 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase, 3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase
IP degree of protection IP54 standard
Product compatibility LXM32.D72N4 at 400...480 V three phase
Peak stall torque 50.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 50.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Nominal output power 3500 W for LXM32.D72N4 at 24 A, 480 V, three phase, 3500 W for LXM32.D72N4 at 24 A, 400 V, three phase
Speed feedback resolution 32768 points/turn
Maximum mechanical speed 4000 rpm
Nominal torque 12.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 12.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Electrical connection rotatable right-angled connectors
Shaft end smooth shaft
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Coefficient 1_2 -7.40962495854577E-09 N.m/rpm²
Coefficient 1_1 -0.0015580971044942 N.m/rpm
Coefficient 1_4 -5.2956438523721E-15 N.m/rpm4
Coefficient 1_3 9.68956725377379E-12 N.m/rpm3
Coefficient 1_6 -1.0211119865247E-22 N.m/rpm6
Coefficient 1_5 1.22533438374952E-18 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Coefficient 2_1 0.000210624396135302 N.m/rpm
Accuracy error [angular] 4.8 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 140 mm
Stator inductance 3 mH at 20 °C
Centring collar depth 3.5 mm
Back emf constant 70.7 V/krpm at 120 °C
Maximum radial force Fr 1550 N at 3000 rpm, 1780 N at 2000 rpm, 2240 N at 1000 rpm
Saturation coefficient 1 8.9283669812E-18
Saturation coefficient 3 -3.881898687E-19
Saturation coefficient 2 -0.008682328907048
Temperature magnet hot 100 °C
Continuous power 4.44 W
Circle diameter of the mounting holes 165 mm
Maximum permanent current 57.4 A
Torque constant 1.1 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 16.83 A
Range compatibility Lexium 32
Stator resistance 0.23 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 11 mm
Shaft diameter 24 mm
Centring collar diameter 130 mm
Sizing reference BMH1402P
Net weight 12 kg
Maximum current Irms 57.4 A for LXM32.D72N4
Length 192 mm
Shaft length 50 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 32 kg.cm²
Number of motor stacks 2
Stator electrical time constant 13 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 20.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 12.3 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 73.5 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 86.8 kg
