SKU:

BMH1401P12F2A

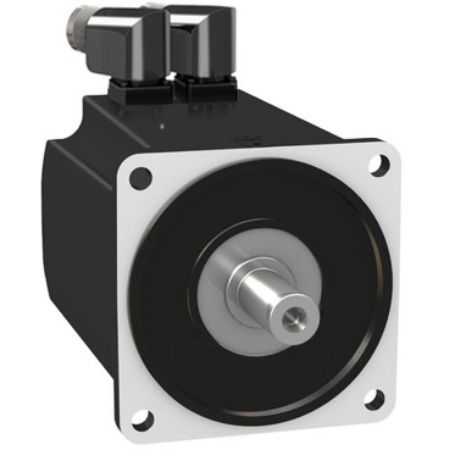

servo motor BMH, Lexium 32, 10.3Nm, 4000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

$5,211.36 INC GST

Qty:

Available for Shipping : 02-Sep-2025

Product Selector

servo motor BMH, Lexium 32, 10.3Nm, 4000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

Be the first to review this product

Manufacturer: Schneider Electric

CAD

Declaration of conformity

Environmental Disclosure

Catalog

User guide

Product Page Link

Product Data Sheet

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 4000RPM, a keyed shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 8.58A, a continuous power of 2.85W, and a continuous stall torque of 10.3Nm. Its degree of protection is IP54 rated. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 10.3kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30M2, LXM32SD30M2, LXM32MD30M2, LXM32CD30M2, LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	10.3 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 10.3 N.m for LXM32.D30N4 at 10 A, 400 V, three phase, 10.3 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
Device short name	BMH
Nominal speed	3000 rpm for LXM32.D30N4 at 10 A, 480 V, three phase, 3000 rpm for LXM32.D30N4 at 10 A, 400 V, three phase, 2000 rpm for LXM32.D30M2 at 10 A, 230 V, single phase
IP degree of protection	IP54 standard
Product compatibility	LXM32.D30N4 at 400...480 V three phase, LXM32.D30M2 at 230 V single phase
Peak stall torque	30.8 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 30.8 N.m for LXM32.D30N4 at 10 A, 400 V, three phase, 30.8 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
Nominal output power	2400 W for LXM32.D30N4 at 10 A, 480 V, three phase, 2400 W for LXM32.D30N4 at 10 A, 400 V, three phase, 1450 W for LXM32.D30M2 at 10 A, 230 V, single phase
Speed feedback resolution	131072 points/turn x 4096 turns
Maximum mechanical speed	4000 rpm
Nominal torque	7.7 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 7.7 N.m for LXM32.D30N4 at 10 A, 400 V, three phase, 6.9 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	with
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	7.40962511090787E-08 N.m/rpm²
Coefficient 1_1	-0.0009190289556011 N.m/rpm
Coefficient 1_4	5.29564392760141E-14 N.m/rpm4
Coefficient 1_3	-9.68956741220659E-11 N.m/rpm3
Coefficient 1_6	1.02111200025244E-21 N.m/rpm6
Coefficient 1_5	-1.22533440031471E-17 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	0.00012875603864735 N.m/rpm
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	140 mm
Stator inductance	6.7 mH at 20 °C
Brake pull-in power	18 W
Centring collar depth	3.5 mm
Back emf constant	77.4 V/krpm at 120 °C
Maximum radial force Fr	1340 N at 3000 rpm, 1530 N at 2000 rpm, 1930 N at 1000 rpm
Saturation coefficient 1	2.3003844074E-17
Saturation coefficient 3	-1.1789470087E-18
Saturation coefficient 2	-0.00955056179775281
Temperature magnet hot	100 °C
Continuous power	2.85 W
Circle diameter of the mounting holes	165 mm
Maximum permanent current	29.8 A
Torque constant	1.2 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	8.58 A
Range compatibility	Lexium 32
Stator resistance	0.69 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	11 mm
Shaft diameter	24 mm
Key width	40 mm
Centring collar diameter	130 mm
Sizing reference	BMH1401P
Net weight	10.3 kg
Maximum current Irms	29.8 A for LXM32.D30N4, 29.8 A for LXM32.D30M2
Length	187 mm
Shaft length	50 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	17.96 kg.cm²
Number of motor stacks	1
Holding torque	18 N.m holding brake
Stator electrical time constant	9.7 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	26.0 cm
Package 1 Width	20.0 cm
Package 1 Length	60.0 cm
Package 1 Weight	10.6 kg
