SKU:

BMH1003P17F2A

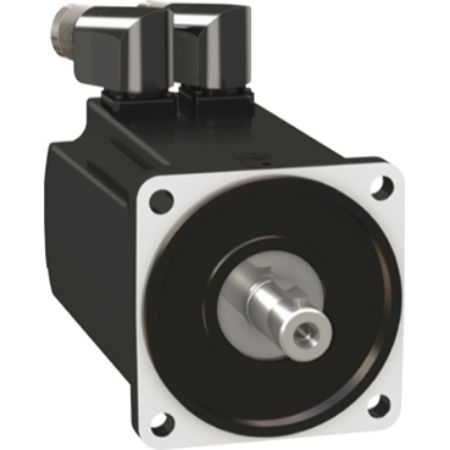

servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 16 multiturn encoder

$4,229.28 INC GST

Qty:

Available for Shipping : 28-Aug-2025

Product Selector

servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 16 multiturn encoder

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Environmental Disclosure

Catalog

CAD

User guide

Product Page Link

Product Data Sheet

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 7.69A and a continuous power of 3.3W. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 234.3mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 8.15kg. This product is compatible with Lexium 32 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	8.4 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 8.4 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Device short name	BMH
Nominal speed	4000 rpm for LXM32.D30N4 at 10 A, 480 V, three phase, 4000 rpm for LXM32.D30N4 at 10 A, 400 V, three phase
IP degree of protection	IP54 standard
Product compatibility	LXM32.D30N4 at 400...480 V three phase
Peak stall torque	25.1 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 25.1 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Nominal output power	2700 W for LXM32.D30N4 at 10 A, 480 V, three phase, 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase
Speed feedback resolution	32768 points/turn x 4096 turns
Maximum mechanical speed	6000 rpm
Nominal torque	6.2 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 6.2 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	with
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	-4.75591811008787E-07 N.m/rpm²
Coefficient 1_1	-0.0002861662115237 N.m/rpm
Coefficient 1_4	-2.17538877103337E-13 N.m/rpm4
Coefficient 1_3	4.97545162490153E-10 N.m/rpm3
Coefficient 1_6	-2.68454977370236E-21 N.m/rpm6
Coefficient 1_5	4.02682466052377E-17 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	8.3922538504491E-05 N.m/rpm
Accuracy error [angular]	4.8 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	100 mm
Stator inductance	4 mH at 20 °C
Brake pull-in power	18 W
Centring collar depth	3.5 mm
Back emf constant	63.5 V/krpm at 120 °C
Maximum radial force Fr	610 N at 5000 rpm, 660 N at 4000 rpm, 730 N at 3000 rpm, 830 N at 2000 rpm, 1050 N at 1000 rpm
Saturation coefficient 1	8.9283669812E-18
Saturation coefficient 3	-3.881898687E-19
Saturation coefficient 2	-0.008682328907048
Temperature magnet hot	100 °C
Continuous power	3.3 W
Circle diameter of the mounting holes	115 mm
Maximum permanent current	29.1 A
Torque constant	1 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	7.69 A
Range compatibility	Lexium 32
Stator resistance	0.63 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	9 mm
Shaft diameter	19 mm
Key width	30 mm
Centring collar diameter	95 mm
Sizing reference	BMH1003P
Net weight	8.15 kg
Maximum current Irms	29.1 A for LXM32.D30N4
Length	234.3 mm
Shaft length	40 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	10.3 kg.cm²
Number of motor stacks	3
Holding torque	9 N.m holding brake
Stator electrical time constant	6.3 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	19.500 cm
Package 1 Width	22.000 cm
Package 1 Length	39.500 cm
Package 1 Weight	8.620 kg
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	17.890 kg
Unit Type of Package 3	3
Number of Units in Package 3	8
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	79.560 kg
