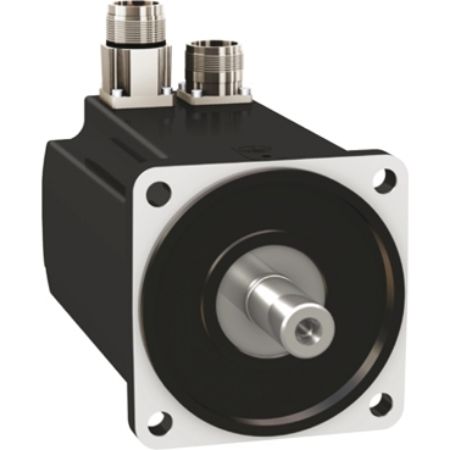

Picture of servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, without brake, IP54, 16bit encoder, straight
SKU:

BMH1003P16A1A

servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, without brake, IP54, 16bit encoder, straight

$2,597.76 INC GST
Available for Shipping : 28-Aug-2025
Product Selector
servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, without brake, IP54, 16bit encoder, straight
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 8.4 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 8.4 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Device short name BMH
Nominal speed 4000 rpm for LXM32.D30N4 at 10 A, 480 V, three phase, 4000 rpm for LXM32.D30N4 at 10 A, 400 V, three phase
IP degree of protection IP54 standard
Product compatibility LXM32.D30N4 at 400...480 V three phase
Peak stall torque 25.1 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 25.1 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Nominal output power 2700 W for LXM32.D30N4 at 10 A, 480 V, three phase, 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase
Speed feedback resolution 32768 points/turn
Maximum mechanical speed 6000 rpm
Nominal torque 6.2 N.m for LXM32.D30N4 at 10 A, 480 V, three phase, 6.2 N.m for LXM32.D30N4 at 10 A, 400 V, three phase
Electrical connection straight connectors
Shaft end keyed
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Coefficient 1_2 -4.75591811008787E-07 N.m/rpm²
Coefficient 1_1 -0.0002861662115237 N.m/rpm
Coefficient 1_4 -2.17538877103337E-13 N.m/rpm4
Coefficient 1_3 4.97545162490153E-10 N.m/rpm3
Coefficient 1_6 -2.68454977370236E-21 N.m/rpm6
Coefficient 1_5 4.02682466052377E-17 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Coefficient 2_1 8.3922538504491E-05 N.m/rpm
Accuracy error [angular] 4.8 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 100 mm
Stator inductance 4 mH at 20 °C
Centring collar depth 3.5 mm
Back emf constant 63.5 V/krpm at 120 °C
Maximum radial force Fr 610 N at 5000 rpm, 660 N at 4000 rpm, 730 N at 3000 rpm, 830 N at 2000 rpm, 1050 N at 1000 rpm
Saturation coefficient 1 8.9283669812E-18
Saturation coefficient 3 -3.881898687E-19
Saturation coefficient 2 -0.008682328907048
Temperature magnet hot 100 °C
Continuous power 3.3 W
Circle diameter of the mounting holes 115 mm
Maximum permanent current 29.1 A
Torque constant 1 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 7.69 A
Range compatibility Lexium 32
Stator resistance 0.63 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 9 mm
Shaft diameter 19 mm
Key width 30 mm
Centring collar diameter 95 mm
Sizing reference BMH1003P
Net weight 6.5 kg
Maximum current Irms 29.1 A for LXM32.D30N4
Length 192.6 mm
Shaft length 40 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 9.37 kg.cm²
Number of motor stacks 3
Stator electrical time constant 6.3 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 19.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 7.484 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 105.0 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 38.484 kg
