SKU:

BMH1002P12F2A

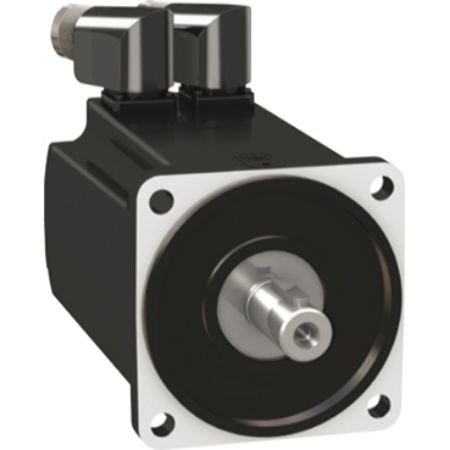

servo motor BMH, Lexium 32, 6.2Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

$4,279.44 INC GST

Qty:

Available for Shipping : 28-Aug-2025

Product Selector

servo motor BMH, Lexium 32, 6.2Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Environmental Disclosure

Catalog

CAD

User guide

Product Page Link

Product Data Sheet

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 6000RPM and keyed shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 5.04A and a continuous power of 2.36W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 202.3mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.4kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D18N4 at 400V to 480V three phase. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	6.2 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 6.2 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Device short name	BMH
Nominal speed	4000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase, 4000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase
IP degree of protection	IP54 standard
Product compatibility	LXM32.D18N4 at 400...480 V three phase
Peak stall torque	18.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 18.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Nominal output power	1600 W for LXM32.D18N4 at 6 A, 480 V, three phase, 1600 W for LXM32.D18N4 at 6 A, 400 V, three phase
Speed feedback resolution	131072 points/turn x 4096 turns
Maximum mechanical speed	6000 rpm
Nominal torque	3.9 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 3.9 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	with
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	-3.06629777911547E-07 N.m/rpm²
Coefficient 1_1	-9.9798936259E-05 N.m/rpm
Coefficient 1_4	-9.73989671142508E-14 N.m/rpm4
Coefficient 1_3	2.6731985863239E-10 N.m/rpm3
Coefficient 1_6	-8.3469235812636E-22 N.m/rpm6
Coefficient 1_5	1.50244624458992E-17 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	4.99848710753859E-05 N.m/rpm
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	100 mm
Stator inductance	7.5 mH at 20 °C
Brake pull-in power	12 W
Centring collar depth	3.5 mm
Back emf constant	77 V/krpm at 120 °C
Maximum radial force Fr	580 N at 5000 rpm, 620 N at 4000 rpm, 690 N at 3000 rpm, 790 N at 2000 rpm, 990 N at 1000 rpm
Saturation coefficient 1	2.3003844074E-17
Saturation coefficient 3	-1.1789470087E-18
Saturation coefficient 2	-0.00955056179775281
Temperature magnet hot	100 °C
Continuous power	2.36 W
Circle diameter of the mounting holes	115 mm
Maximum permanent current	18.23 A
Torque constant	1.2 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	5.04 A
Range compatibility	Lexium 32
Stator resistance	1.51 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	9 mm
Shaft diameter	19 mm
Key width	30 mm
Centring collar diameter	95 mm
Sizing reference	BMH1002P
Net weight	6.4 kg
Maximum current Irms	18 A for LXM32.D18N4
Length	202.3 mm
Shaft length	40 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	6.77 kg.cm²
Number of motor stacks	2
Holding torque	5.5 N.m holding brake
Stator electrical time constant	5 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	19.500 cm
Package 1 Width	22.000 cm
Package 1 Length	40.000 cm
Package 1 Weight	6.909 kg
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	14.468 kg
Unit Type of Package 3	3
Number of Units in Package 3	8
Package 3 Height	75.000 cm
Package 3 Width	80.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	65.872 kg
