SKU:

BMH0702P07A1A

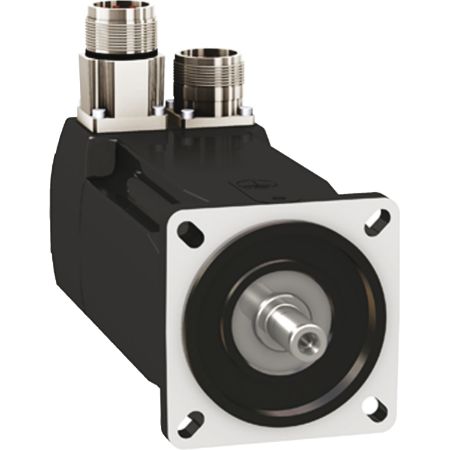

servo motor BMH, Lexium 32, 2.5Nm, 8000rpm, untapped shaft, without brake, IP54, 16 multiturn encoder, straight, 3 phases

$2,312.64 INC GST

Qty:

Available for Shipping : 28-Aug-2025

Product Selector

servo motor BMH, Lexium 32, 2.5Nm, 8000rpm, untapped shaft, without brake, IP54, 16 multiturn encoder, straight, 3 phases

Be the first to review this product

Manufacturer: Schneider Electric

CAD

Declaration of conformity

Environmental Disclosure

Catalog

User guide

Product Page Link

Product Data Sheet

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 32,768 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 2.94A and a continuous power of 1.51W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with straight connectors for electrical connection. It is an IP54 rated product. The length of this product is 154mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 2.3kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	2.5 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 2.5 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Device short name	BMH
Nominal speed	3000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase, 3000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase
IP degree of protection	IP54 standard
Product compatibility	LXM32.D12N4 at 400...480 V three phase
Peak stall torque	7.4 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 7.4 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Nominal output power	700 W for LXM32.D12N4 at 3 A, 480 V, three phase, 700 W for LXM32.D12N4 at 3 A, 400 V, three phase
Speed feedback resolution	32768 points/turn x 4096 turns
Maximum mechanical speed	8000 rpm
Nominal torque	2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Electrical connection	straight connectors
Shaft end	smooth shaft
Product or component type	servo motor
Holding brake	without
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	1.9804158049E-18 N.m/rpm²
Coefficient 1_1	-8.50000000013E-05 N.m/rpm
Coefficient 1_4	2.579E-25 N.m/rpm4
Coefficient 1_3	-1.0620928E-21 N.m/rpm3
Coefficient 1_6	1.21E-33 N.m/rpm6
Coefficient 1_5	-2.88886E-29 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	1.55000000000008E-05 N.m/rpm
Accuracy error [angular]	4.8 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	70 mm
Stator inductance	12.2 mH at 20 °C
Centring collar depth	2.5 mm
Back emf constant	54.08 V/krpm at 120 °C
Maximum radial force Fr	390 N at 6000 rpm, 410 N at 5000 rpm, 450 N at 4000 rpm, 490 N at 3000 rpm, 560 N at 2000 rpm, 710 N at 1000 rpm
Saturation coefficient 1	1.40467222877E-17
Saturation coefficient 3	-6.757379196E-19
Saturation coefficient 2	-0.00672880490296221
Temperature magnet hot	100 °C
Continuous power	1.51 W
Circle diameter of the mounting holes	82 mm
Maximum permanent current	9.68 A
Torque constant	0.84 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	2.94 A
Range compatibility	Lexium 32
Stator resistance	3.8 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	5.5 mm
Shaft diameter	11 mm
Centring collar diameter	60 mm
Sizing reference	BMH0702P
Net weight	2.3 kg
Maximum current Irms	9.7 A for LXM32.D12N4
Length	154 mm
Shaft length	23 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	1.13 kg.cm²
Number of motor stacks	2
Stator electrical time constant	3.2 ms at 20 °C
