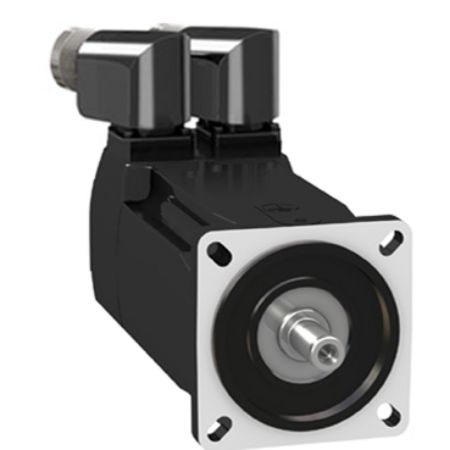

Picture of servo motor BMH, Lexium 32, 1.4Nm, 8000rpm, keyed shaft, with brake, IP54, 128bit encoder
SKU:

BMH0701T11F2A

servo motor BMH, Lexium 32, 1.4Nm, 8000rpm, keyed shaft, with brake, IP54, 128bit encoder

$3,344.88 INC GST
Available for Shipping : 28-Aug-2025
Product Selector
servo motor BMH, Lexium 32, 1.4Nm, 8000rpm, keyed shaft, with brake, IP54, 128bit encoder
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 1.4 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.4 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Device short name BMH
Nominal speed 2500 rpm for LXM32.D18M2 at 6 A, 115 V, single phase, 4000 rpm for LXM32.U90M2 at 3 A, 230 V, single phase
IP degree of protection IP54 standard
Product compatibility LXM32.U90M2 at 230 V single phase, LXM32.D18M2 at 115 V single phase
Peak stall torque 4.2 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 4 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Nominal output power 350 W for LXM32.D18M2 at 6 A, 115 V, single phase, 450 W for LXM32.U90M2 at 3 A, 230 V, single phase
Speed feedback resolution 131072 points/turn
Maximum mechanical speed 8000 rpm
Nominal torque 1.35 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.1 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake with
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Coefficient 1_2 5.62440546E-19 N.m/rpm²
Coefficient 1_1 -1.87500000003E-05 N.m/rpm
Coefficient 1_4 7.11E-26 N.m/rpm4
Coefficient 1_3 -2.965143E-22 N.m/rpm3
Coefficient 1_6 3.2E-34 N.m/rpm6
Coefficient 1_5 -7.8919E-30 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Coefficient 2_1 8.75000000000026E-06 N.m/rpm
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 240 V
Motor flange size 70 mm
Stator inductance 9.1 mH at 20 °C
Brake pull-in power 7 W
Centring collar depth 2.5 mm
Back emf constant 31.17 V/krpm at 120 °C
Maximum radial force Fr 360 N at 6000 rpm, 380 N at 5000 rpm, 410 N at 4000 rpm, 460 N at 3000 rpm, 520 N at 2000 rpm, 660 N at 1000 rpm
Saturation coefficient 1 -3.8243890773E-18
Saturation coefficient 3 1.58151428E-19
Saturation coefficient 2 -0.0078140960163432
Temperature magnet hot 100 °C
Continuous power 1.05 W
Circle diameter of the mounting holes 82 mm
Maximum permanent current 9.56 A
Torque constant 0.49 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 2.85 A
Range compatibility Lexium 32
Stator resistance 3.2 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 5.5 mm
Shaft diameter 11 mm
Key width 18 mm
Centring collar diameter 60 mm
Sizing reference BMH0701T
Net weight 2.6 kg
Maximum current Irms 9.6 A for LXM32.U90M2, 9.6 A for LXM32.D18M2
Length 161 mm
Shaft length 23 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 0.7 kg.cm²
Number of motor stacks 1
Holding torque 3 N.m holding brake
Stator electrical time constant 2.8 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 20.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 1.8 kg
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 105.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 71.8 kg
