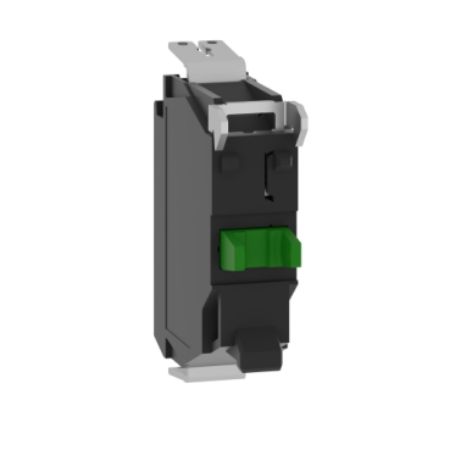

Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
SKU:

ZBE1013

Single contact block, Harmony XB4, silver alloy, faston connector, 1NO

Old price: $18.26 INC GST
$14.24 INC GST
Available for Shipping : 12-Aug-2025
Single contact block, Harmony XB4, silver alloy, faston connector, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet
Image of product in real life situation
CAD
Product Page Link
Product Data Sheet
This Harmony ZB, single contact block uses fast-on terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple fast-on connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZBE
Contact operation slow-break
Sale per indivisible quantity 5
IP degree of protection IP20 conforming to IEC 60529
Contact block type single
Range of product Harmony XB4, Harmony XB5
Connections - terminals Faston connector, connection size: 2 x 2.8 mm, Faston connector, connection size: 1 x 6.35 mm
Product or component type contact block
Contacts usage standard contacts
Complementary
Compatibility code ZBE
Mechanical durability 10000000 cycles
Electrical composition code C13 (quantity <= 1 ), M4 (quantity <= 2 ), C10 (quantity <= 2 ), MF2 (quantity <= 2 ), MF1 (quantity <= 2 ), SF2 (quantity <= 2 ), SF1 (quantity <= 3 ), M9 (quantity <= 2 ), M8 (quantity <= 4 ), M7 (quantity <= 6 ), M6 (quantity <= 2 ), M5 (quantity <= 2 ), M3 (quantity <= 4 ), M2 (quantity <= 4 ), M1 (quantity <= 6 ), C12 (quantity <= 6 ), C9 (quantity <= 3 ), C8 (quantity <= 2 ), C7 (quantity <= 4 ), C6 (quantity <= 3 ), C5 (quantity <= 5 ), C4 (quantity <= 4 ), C3 (quantity <= 6 ), C2 (quantity <= 7 ), C1 (quantity <= 9 )
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Operating force 2.3 N NO changing electrical state
Contacts type and composition 1 NO
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Net weight 0.011 kg
Positive opening without
Mounting of block front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, UL 508, JIS C8201-5-1, IEC 60947-5-4
Product certifications BV, LROS (Lloyds register of shipping), DNV, UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 4.4 cm
Package 1 Length 5.4 cm
Package 1 Weight 10 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.6 cm
Package 2 Width 4.4 cm
Package 2 Length 5.4 cm
Package 2 Weight 59 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.02 kg
