SKU:

ZB5AW743

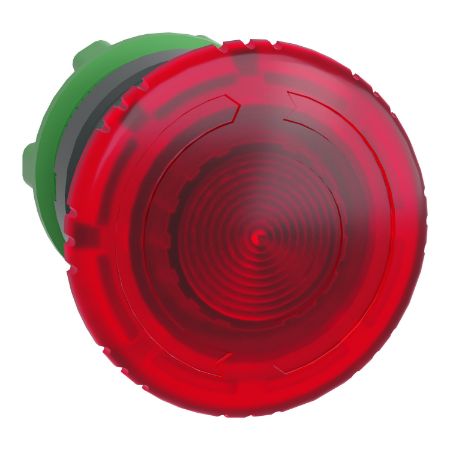

Head for illuminated emergency switching off push button, Harmony XB5, plastic, red mushroom 40mm, 22mm, universal LED, turn to release

Old price: $102.74 INC GST
$80.14 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Head for illuminated emergency switching off push button, Harmony XB5, plastic, red mushroom 40mm, 22mm, universal LED, turn to release
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Image of product in real life situation
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
CAD
Product Page Link
Product Data Sheet
This red illuminated 40mm mushroom shape button head for integral LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Sale per indivisible quantity 1
Head type standard
Type of operator latching
Range of product Harmony XB5
Reset turn to release
Operator profile red mushroom Ø 40 mm, unmarked
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type head for illuminated emergency switching off push-button
Mounting diameter 22 mm
Complementary
Group of product emer swi off illum turn to rel
Station name XALK 1 cut-out, XALD 1 cut-out
Compatibility code ZB5
Mechanical durability 300000 cycles
Device presentation basic sub-assemblies
CAD overall height 40 mm
Customizable 1, no
Electrical composition code MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
Main group switching off
CAD overall depth 50 mm
CAD overall width 40 mm
Marking unmarked
Cap/operator or lens colour red
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.022 kg
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 62262
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, GB 14048.5, IEC 60947-1, IEC 60947-5-4
Product certifications DNV, CSA, GL, BV, LROS (Lloyds register of shipping), UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 4.300 cm
Package 1 Length 5.200 cm
Package 1 Weight 32.000 g
Unit Type of Package 2 2
Number of Units in Package 2 120
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.286 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail
