ZB5AW36

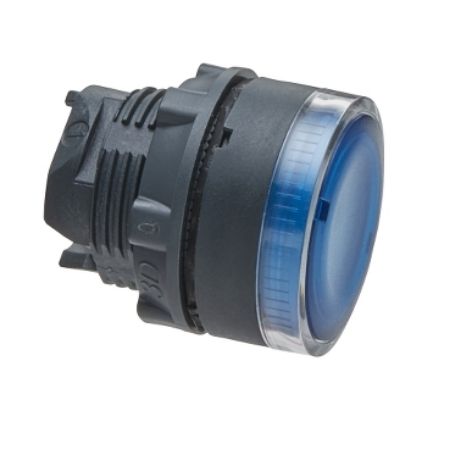

Head for illuminated push button, Harmony XB5, blue flush, 22mm, BA9s bulb, spring return, unmarked

Old price: $36.52 INC GST
$28.49 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Head for illuminated push button, Harmony XB5, blue flush, 22mm, BA9s bulb, spring return, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Environmental Disclosure
CAD
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This blue flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility BA 9s
Operator profile blue flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for illuminated push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information with plain lens
Complementary
Group of product flush push BA9s
CAD overall depth 32 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour blue
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic sub-assemblies
CAD overall height 29 mm
Net weight 0.018 kg
Electrical composition code MF2 for <2 contacts using single blocks in front mounting with BA 9s, M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer, M8 for <6 contacts using single and double blocks in front mounting with BA 9s, M7 for <6 contacts using single blocks in front mounting with BA 9s
Main group illum push-button
Environment
Protective treatment TC
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-5-1, UL 508
Ambient air temperature for operation -40-55 °C
IK degree of protection IK05 conforming to EN 50102
Product certifications UL listed, DNV, BV, LROS (Lloyds register of shipping), CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 3.4 cm
Package 1 Length 4.4 cm
Package 1 Weight 18.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.075 kg
