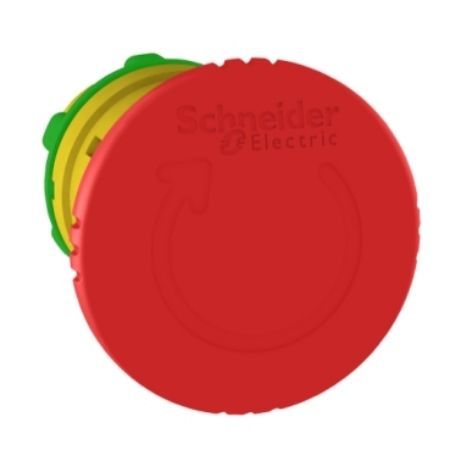

Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Picture of Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
SKU:

ZB5AS844

Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release

Old price: $61.38 INC GST
$47.88 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Circularity Profile
CAD
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, Emergency stop 40mm mushroom red button head operates with a turn to release mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Sale per indivisible quantity 1
Device presentation basic element
Head type standard
Type of operator trigger action and mechanical latching
Range of product Harmony XB5
Reset turn to release
Operator profile red mushroom Ø 40 mm, unmarked
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type head for emergency stop push-button
Mounting diameter 22 mm
Product destination emergency stop push-button
Complementary
Group of product emergency stop turn to release
Station name XALK 1 cut-out, XALD 1 cut-out
Compatibility code ZB5
Mechanical durability 300000 cycles
CAD overall height 40 mm
Customizable 0, no
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting
Main group E-stop
CAD overall depth 57 mm
CAD overall width 40 mm
Marking unmarked
Cap/operator or lens colour red
Net weight 0.046 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, GB 14048.5, IEC 60204-1, IEC 60364-5-53, ISO 13850, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certifications BV, GL, UL listed, LROS (Lloyds register of shipping), DNV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 4.400 cm
Package 1 Length 8.800 cm
Package 1 Weight 41.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.570 kg
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 47.804 kg
