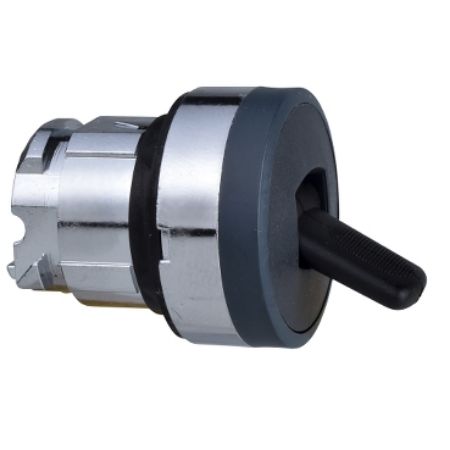

Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
SKU:

ZB4BD28

Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put

Old price: $81.29 INC GST
$63.41 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Toggle switch head, Harmony XB4, metal, black, 22mm, 2 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
CAD
Circularity Profile
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, black selector switch head with toggle switch with lever has 2 positions, operates with stay-put mechanism. This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between the two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Range of product Harmony XB4
Bezel material chromium plated metal
Product or component type head for selector switch
Mounting diameter 22 mm
Complementary
Group of product selec. switches 2 posi. lever
Compatibility code ZB4
Mechanical durability 500000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Type of operator stay put
Electrical composition code C13 for <6 contacts using single and double blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C12 for <6 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group selector switch
CAD overall depth 45 mm
CAD overall width 29 mm
Operator position information 2 positions 90°
Operator profile black toggle switch
Overvoltage category class I conforming to IEC 60536
Cap/operator or lens colour black
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.026 kg
Shape of signaling unit head round
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-5-5, IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, UL 508
Product certifications DNV, LROS (Lloyds register of shipping), GL, BV, UL listed, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 4.7 cm
Package 1 Length 5.4 cm
Package 1 Weight 32.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.878 kg
