SKU:

ZB4BA7340

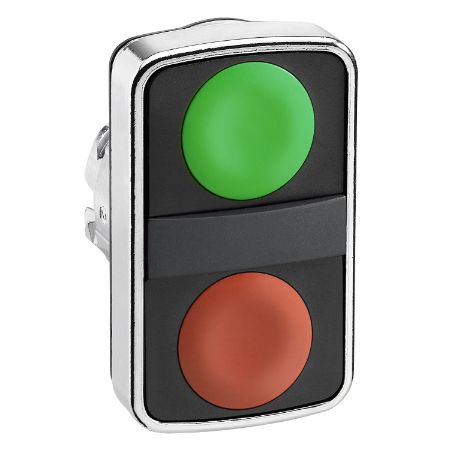

Head for double headed push button, Harmony XB4, metal, 22mm, 1 green flush unmarked+1 red flush unmarked

Old price: $62.26 INC GST
$48.56 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Head for double headed push button, Harmony XB4, metal, 22mm, 1 green flush unmarked+1 red flush unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, double head has 1 green and 1 red button, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Operators description green unmarked - red unmarked
Type of operator spring return
Range of product Harmony XB4
Bezel material chromium plated metal
Operator profile 2 flush push-buttons
Shape of signaling unit head rectangular
Product or component type head for double-headed push-button
Mounting diameter 22 mm
Complementary
Group of product flush/flush unmarked
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
Customizable 0, no
Electrical composition code C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group double head
Marking unmarked
Operator profile red flush, unmarked, green flush, unmarked
Cap/operator or lens colour green/red
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.056 kg
Colour of marking black marking when white caps, white marking when green, red or black caps
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-5-5, CSA C22.2 No 14, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1
Product certifications LROS (Lloyds register of shipping), DNV, CSA, GL, BV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 3.500 cm
Package 1 Length 5.300 cm
Package 1 Weight 56.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.500 cm
Package 2 Width 3.500 cm
Package 2 Length 26.600 cm
Package 2 Weight 281.000 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.728 kg

Related products

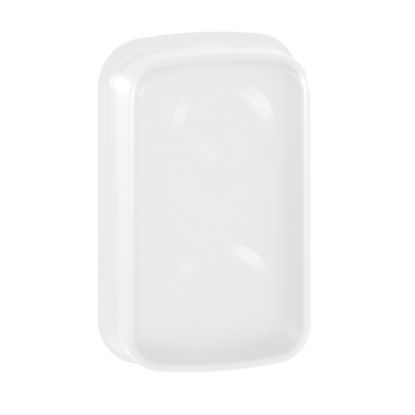

Silicone boot, Harmony XB4, for 22mm flush double headed push button, clear
