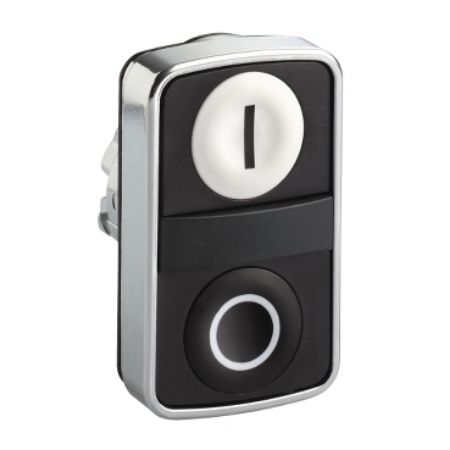

Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Picture of Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
SKU:

ZB4BA7121

Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O

Old price: $62.26 INC GST
$48.56 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Head for double headed push button, Harmony XB4, metal, 22mm, 1 white flush marked I + 1 black flush marked O
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, double head has 1 white and 1 black button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Operators description white ''I'' - black ''O''
Type of operator spring return
Range of product Harmony XB4
Bezel material chromium plated metal
Operator profile 2 flush push-buttons
Shape of signaling unit head rectangular
Product or component type head for double-headed push-button
Mounting diameter 22 mm
Complementary
Group of product flush/flush marked
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
Colour of marking black/white, white marking when green, red or black caps, black marking when white caps
Electrical composition code C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group double head
Marking I-O
Operator profile white flush, I (black), black flush, O (white)
Cap/operator or lens colour white/black
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.056 kg
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, JIS C8201-5-1, UL 508
Product certifications BV, DNV, GL, LROS (Lloyds register of shipping), CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 4.6 cm
Package 1 Length 5.0 cm
Package 1 Weight 57.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.88 kg
