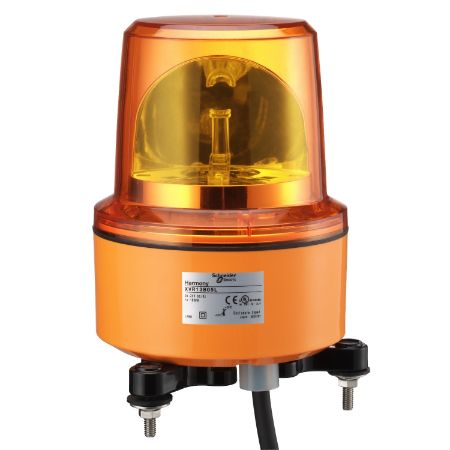

Picture of Rotating beacon, Harmony XVR, 130mm, orange, without buzzer, 230V AC
SKU:

XVR13M05L

Rotating beacon, Harmony XVR, 130mm, orange, without buzzer, 230V AC

Old price: $406.89 INC GST
$317.37 INC GST
Available for Shipping : 28-Aug-2025
Rotating beacon, Harmony XVR, 130mm, orange, without buzzer, 230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This orange beacon is part of the range of rotating beacons Harmony XVR diameter 130mm. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 66 and IP 67. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.

Products specifications

Attribute name Attribute value
Main
Device short name XVR
IP degree of protection IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Light source high luminosity LED, orange
Range of product Harmony XVR
[Us] rated supply voltage 230 V AC
Sound signalling without
Product or component type prewired rotating mirror beacon
Mounting diameter 130 mm
Complementary
Compatibility code XVR
Product mounting by 3 M6 screws
Marking CE
Cable length 400 mm
Flashing frequency 2.7 Hz
Clamping connection capacity 1.25 mm²
CAD overall depth 130 mm
CAD overall width 130 mm
Material PC: globe, ABS (acrylonitrile butadiene-styrene): body part
AWG gauge AWG 18
Current consumption 22 mA
[Uimp] rated impulse withstand voltage 4 kV
Net weight 0.99 kg
Environment
Protective treatment TC
Ambient air temperature for storage -35-70 °C
Ambient air temperature for operation -30-50 °C
Electrical shock protection class class II conforming to IEC 61140
Standards EN/IEC 60947-5-1, EN/IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.500 cm
Package 1 Width 19.500 cm
Package 1 Length 26.500 cm
Package 1 Weight 1.340 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.102 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 45.668 kg
