SKU:

XVBC2B5

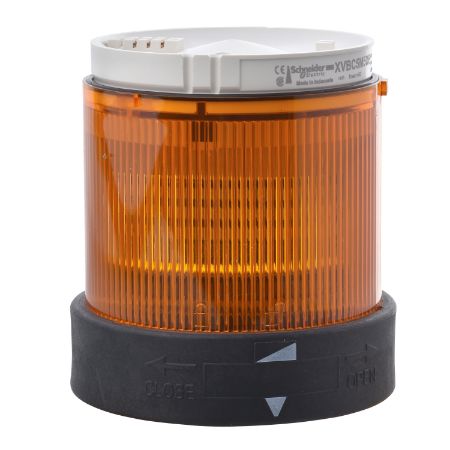

Harmony XVB, Indicator bank, illuminated unit, plastic, orange, 70mm, steady, integral LED, 24V AC/DC

Old price: $249.15 INC GST
$194.34 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony XVB, Indicator bank, illuminated unit, plastic, orange, 70mm, steady, integral LED, 24V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Circularity Profile
Environmental Disclosure
Declaration of conformity
User guide
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XVB illuminated unit is supplied with 24V AC/DC and has an orange LED with a steady light. This orange indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Products specifications

Attribute name Attribute value
Main
Beacon or indicator bank unit type illuminated unit
Bulb type protected LED
Light source integral LED, orange
Range of product Harmony XVB Universal
[Us] rated supply voltage 24 V AC/DC
Signalling type steady
Material polycarbonate
Component name XVBC
Product or component type indicator bank
Mounting diameter 70 mm
Complementary
Assembly style customer assembly, up to 5 units
Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
CAD overall height 63 mm
CAD overall depth 70 mm
CAD overall width 70 mm
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
Connections - terminals screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.15 kg
Current consumption < 47 mA AC/DC
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529
Pollution degree 2
Ambient air temperature for operation -25-50 °C
Electrical shock protection class class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140
NEMA degree of protection Type 4X conforming to UL (indoor)
Standards IEC 60947-5-1
Product certifications UL 508, CSA C22-2 No 14, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 8 cm
Package 1 Length 9.2 cm
Package 1 Weight 136 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.554 kg
Unit Type of Package 3 3
Number of Units in Package 3 288
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 53.372 kg
