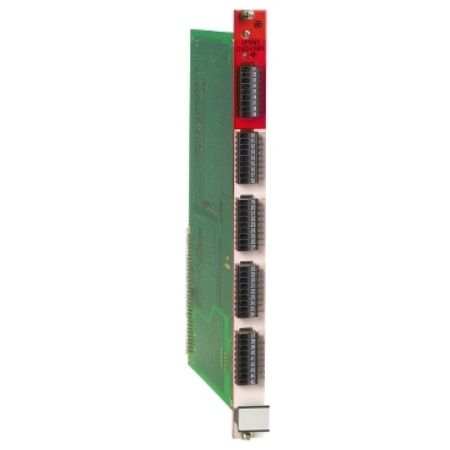

Picture of Digital input or output cards, Preventa Safety automation, 16O, 24I isolated
SKU:

XPSMFDIO241601

Digital input or output cards, Preventa Safety automation, 16O, 24I isolated

$10,944.85 INC GST
Available for Shipping : 21-Aug-2025
Digital input or output cards, Preventa Safety automation, 16O, 24I isolated
  • In rack Input or Output card for safety PLCs
  • Available with 24 digital inputs and 16 digital outputs
  • Outputs are configurable for line control
Be the first to review this product
Manufacturer: Telemecanique
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Function of module monitoring safety dialogue for discrete output, monitoring safety dialogue for discrete input, monitoring safety detection for discrete input, monitoring safety actuators for discrete output
Safety use category SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1
Discrete input number 24 isolated discrete input(s)
Discrete output number 16
Connections - terminals discrete output: removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, discrete output: removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, discrete output: removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, discrete output: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, discrete output: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end, discrete input: removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, discrete input: removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, discrete input: removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, discrete input: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, discrete input: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end
Safety module name XPS MF60
Product or component type digital input/output cards
Standards DIN V 19250, EN 50156 pending, DIN V 0801, IEC 61131
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 15...20 %
Complementary
Discrete output current <= 2 mA (per channel), 8 A at 30 °C (per card), 2 A at 30 °C (per channel)
Current state 0 guaranteed <= 1 mA (discrete input)
Voltage state 1 guaranteed 10...30 V for discrete input
Maximum leakage current 1 mA, at 2 V at state 0
Discrete output voltage 18.4...26.8 V DC
Voltage state 0 guaranteed <= 5 V for discrete input
Net weight 0.26 kg
Marking CE
Current state 1 guaranteed 2...5 mA (discrete input)
Current consumption 0.5 A at 24 V DC, 0.3 A at 3.3 V DC
Maximum voltage drop <2 V at 2 A for discrete output
Discrete input voltage 24 V DC
Number of terminal blocks 3 for discrete input, 2 for discrete output
Environment
Operating altitude < 2000 m
Electrical shock protection class class II conforming to IEC 61131-2
Resistance to electrostatic discharge 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2
Relative humidity 95-95 % supply not connected
Ambient air temperature for storage -40-85 °C conforming to EN/IEC 61131-2
Electromagnetic compatibility EN/IEC 61131-2
IP degree of protection IP20 (with covering plate on unused in rack I/O card slots)
Shock resistance 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2
Vibration resistance 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2
Ambient air temperature for operation 0-60 °C conforming to EN/IEC 61131-2
Pollution degree 2
Resistance to electromagnetic fields 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3
Product certifications TÜV, C-Tick, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 28.5 cm
Package 1 Length 35.5 cm
Package 1 Weight 520.0 g
