SKU:

XPSMCMER0002

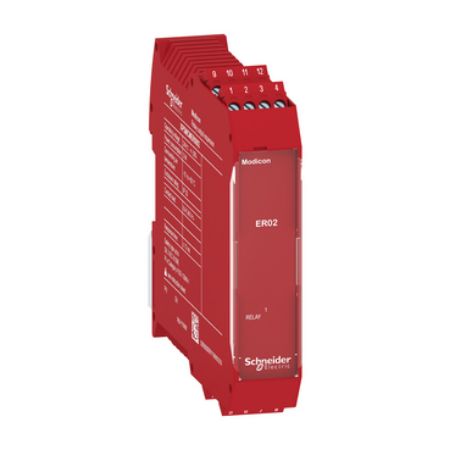

expansion module, Modicon MCM, 2 safety relay outputs, screw

$466.62 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
expansion module, Modicon MCM, 2 safety relay outputs, screw
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This Modicon MCM safe relay output expansion module has 2 guided contact safety relay outputs (2NO + 1NC), 1 start/restart interlock input, and is fitted with captive screw clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0002 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safe controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Function of module monitoring safety actuators for relay output
Device short name XPSMCM
Electrical connection screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Product or component type safe relay output module
Number of outputs 2 relay
Range of product Preventa Safety automation
Complementary
Safety level SILCL 3 conforming to IEC 62061, can reach SIL 3 conforming to IEC 61508, can reach PL = e conforming to ISO 13849-1, can reach category 4 conforming to ISO 13849-1
Depth 114.5 mm
Width 22.5 mm
Switching voltage 10 V DC
Quantity per set 1
Mounting support omega 35 mm DIN rail conforming to EN 50022
Minimum switching current 20 mA
Quality labels CE
Maximum power dissipation in W 3 W
Output type relay, 2 NO + 1 NC circuit(s), volt-free
Maximum switching voltage 250 V DC, 400 V AC
Net weight 0.25 kg
Local signalling 1 LED green/red with RELAY K1 marking for relay contact, 2 LEDs orange with ADDR marking for node address, 1 LED red with E EX marking for external error, 1 LED red with E IN marking for internal error, 1 LED green with RUN marking for RUN (status), 1 LED green with PWR marking for power ON
Associated fuse rating 3.5 A, slow-blow
Maximum switching current 6 A
Cable cross section 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end
Integrated connection type not connected to backplane expansion bus
Height 99 mm
Number of terminal blocks 4
Switching time 12 ms
Connections - terminals 1 captive screw clamp terminals, removable terminal block, 2 captive screw clamp terminals, removable terminal block
Environment
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Electrical durability 20000000 cycles
Overvoltage category II
Safety reliability data B10d = 10000000 utilisation category DC-13 24 V, , <2 A conforming to ISO 13849-1, B10d = 750000 utilisation category AC-15 230 V, , <1 A conforming to ISO 13849-1, B10d = 300000 utilisation category AC-15 230 V, , <3 A conforming to ISO 13849-1
Mechanical durability 20000000 cycles
Relative humidity 10-95 %
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
IP degree of protection IP20
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 61800-5-1
Shock resistance 10 gn for 16 ms (1000 shocks on each axis) conforming to IEC 61496-1
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Pollution degree 2
Standards IEC 61800-5-1, IEC 61508, ISO 13849-1, IEC 62061
Ambient air temperature for operation -10-55 °C
Product certifications RCM, cULus, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.4 cm
Package 1 Width 15.8 cm
Package 1 Length 12.2 cm
Package 1 Weight 236.0 g
Unit Type of Package 2 2
Number of Units in Package 2 26
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.615 kg
