XPSMCMDI1200MT

12 inputs expansion module for safety mats with screw term

$1,090.32 INC GST
Available for Shipping : 14-Aug-2025
Product Selector
12 inputs expansion module for safety mats with screw term
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

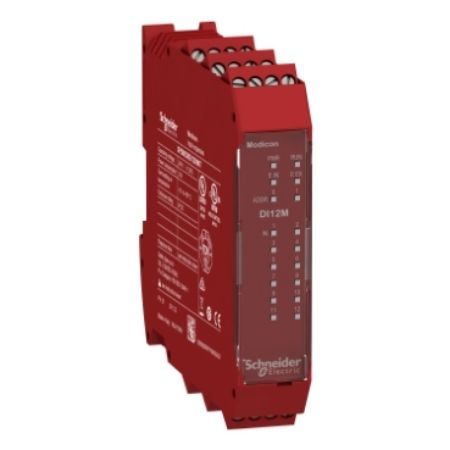

This Modicon MCM safe input expansion module has 12 digital inputs, 8 test outputs for 4 wires safety mats and is fitted with captive screw clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Function of module safety mat monitoring for discrete input
Device short name XPSMCM
[Us] rated supply voltage 24 V - 20...20 % DC
Number of inputs 12 digital
Range of product Preventa Safety automation
Discrete input type PNP
Discrete output type PNP
Electrical connection screw terminal
Product or component type safe input expansion module
Number of outputs 8 test for line control
Complementary
Power dissipation in W 3 W
Discrete input voltage 24 V DC
Height 99 mm
Connections - terminals 1 captive screw clamp terminals, removable terminal block, 2 captive screw clamp terminals, removable terminal block
Safety level SILCL 3 conforming to IEC 62061, can reach SIL 3 conforming to IEC 61508, can reach PL = e conforming to ISO 13849-1, can reach category 4 conforming to ISO 13849-1
Depth 22.5 mm
Width 114.5 mm
Mounting support omega 35 mm DIN rail conforming to EN 50022
Quality labels CE
Net weight 0.25 kg
Local signalling 12 LEDs yellow with IN marking for input status, 2 LEDs orange with ADDR marking for node address, 1 LED red with E EX marking for external error, 1 LED red with E IN marking for internal error, 1 LED green with RUN marking for RUN (status), 1 LED green with PWR marking for power ON
Power consumption in W 3 W
Cable cross section 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end
Integrated connection type backplane expansion bus
Number of terminal blocks 6
Environment
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Safety reliability data PFHd = 3.24E-9 1/h, MTTFd < 100 years high, DC > 99 %
Relative humidity 10-95 %
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
IP degree of protection IP20 (enclosure)
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Ambient air temperature for operation -10-55 °C
Pollution degree 2
Overvoltage category II
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 61800-5-1
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1
Standards ISO 13849-1, IEC 61508, IEC 61800-5-1, IEC 62061
Product certifications RCM, TÜV, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.2 cm
Package 1 Width 12.5 cm
Package 1 Length 16.1 cm
Package 1 Weight 226.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.675 kg
