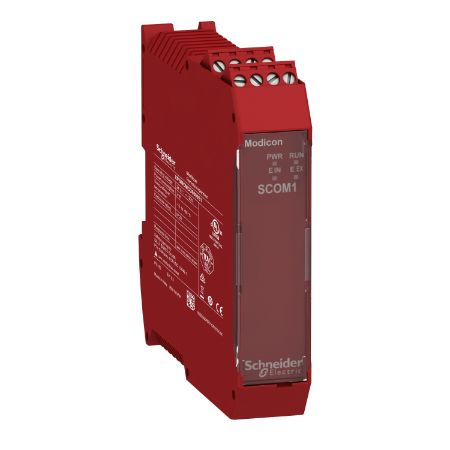

expansion module, Modicon MCM, RS485 safe communication, 1 way, screw

$659.34 INC GST
Available for Shipping : 14-Aug-2025
Product Selector
expansion module, Modicon MCM, RS485 safe communication, 1 way, screw
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Modicon MCM safe RS485 bus expansion module for remote extension has 1 single channel transmitter / receiver network connection and is fitted with captive screw clamp terminals. It enables the connection of modular safety controllers type XPSMCMCP0802 and XPSMCMC10804 with the expansion modules placed at distances up to 50m (164ft.) using RS485 shielded cables. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. Combined with safe RS485 bus expansion module type XPSMCMCO0000S2, It allows to create up to 6 decentralized I/O islands. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors). This safe bus expansion module is connected to the safety controller via the backplane expansion connector, and uses a RS485 serial interface shielded cable to connect to another safe bus expansion module to create decentralized I/O island. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring up to five decentralized safety related islands with a distance of 50 meters (164.04 ft) between each island on a single Safety controller CPU. Embedding a safe communication between decentralized I/O’s. The safe RS485 bus expansion module Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe RS485 bus expansion module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Device short name XPSMCM
[Us] rated supply voltage 24 V - 20...20 % DC
Range of product Modicon MCM
Electrical connection screw terminal
Product or component type safe communication expansion module
Complementary
Power dissipation in W 3 W
Number of port 1
Height 99 mm
Maximum cable distance between devices 50 m
Connections - terminals 2 captive screw clamp terminals, removable terminal block
Safety level can reach SILCL 3 conforming to IEC 62061, can reach SIL 3 conforming to IEC 61508, can reach PL = e conforming to ISO 13849-1, can reach category 4 conforming to ISO 13849-1
Depth 114.5 mm
Width 22.5 mm
Range compatibility Preventa XPSMCM
Mounting support omega 35 mm DIN rail conforming to EN 50022
Quality labels CE
Connector type 4 ways RS485
Communication port protocol RS485
Current consumption 0.125 mA
Net weight 0.3 kg
Local signalling LED red with E EX marking for external error, LED red with E IN marking for internal error, LED green with RUN marking for operating, LED green with PWR marking for power ON
Cable cross section 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end
Environment
IP degree of protection IP20
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
Relative humidity 10-95 %
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Pollution degree 2
Ambient air temperature for operation -10-55 °C
Operating altitude 2000 m
Overvoltage category II
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1
Product certifications TÜV, RCM, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.200 cm
Package 1 Width 12.200 cm
Package 1 Length 15.800 cm
Package 1 Weight 201.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.451 kg
