SKU:

XPSMCMCO0000EI

expansion module, Modicon MCM, Ethernet/IP diagnostic, screw

$1,019.04 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
expansion module, Modicon MCM, Ethernet/IP diagnostic, screw
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

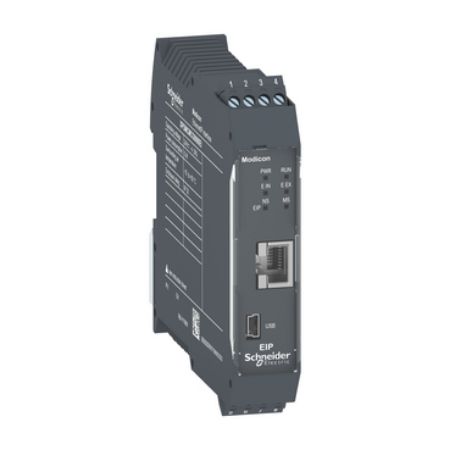

This Modicon MCM standard ("non-safe") communication module has one 1 Ethernet IP connection with a RJ45 connector. It is designed to monitor remotely your safety system with the commonly used Ethernet/IP protocol, without additional gateways. It offers 2 RJ45 ports. It has a rated supply voltage of 24V DC. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The non-safe communication modules are designed for diagnostics connection and data communication purposes to machine field bus or network systems. Its transmission rate varies from 10Mbit/s to 100Mbit/s. This communication module is connected to the safety controller via the backplane expansion connector. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. The maximum cable distance between two devices varies from 250m to 2500m. This Modicon MCM standard ("non-safe") communication module is certified by RCM, CULus and TÜV. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The communication module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Device short name XPSMCM
[Us] rated supply voltage 24 V - 20...20 % DC
Range of product Modicon MCM
Electrical connection screw terminal
Product or component type non-safe communication module
Complementary
Method of access server
Power dissipation in W 3 W
Number of port 1
Height 99 mm
Maximum cable distance between devices 100 m
Connections - terminals 2 captive screw clamp terminals, removable terminal block
Depth 114.5 mm
Width 22.5 mm
Range compatibility Preventa XPSMCM
Mounting support omega 35 mm DIN rail conforming to EN 50022
Quality labels CE
Transmission rate 10/100 Mbit/s
Connector type RJ45
Communication port protocol Ethernet TCP/IP
Current consumption 0.125 mA
Net weight 0.3 kg
Local signalling LED green/red with STS marking for communication status, LED green/red with NET marking for connection state, LED red with E EX marking for external error, LED red with E IN marking for internal error, LED green with RUN marking for operating, LED green with PWR marking for power ON
Cable cross section 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end
Environment
IP degree of protection IP20
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
Relative humidity 10-95 %
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Pollution degree 2
Ambient air temperature for operation -10-55 °C
Operating altitude 2000 m
Overvoltage category II
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1
Product certifications TÜV, RCM, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.572 cm
Package 1 Width 12.700 cm
Package 1 Length 16.002 cm
Package 1 Weight 235.868 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 14.986 cm
Package 2 Width 14.986 cm
Package 2 Length 39.624 cm
Package 2 Weight 1.678 kg

Related products

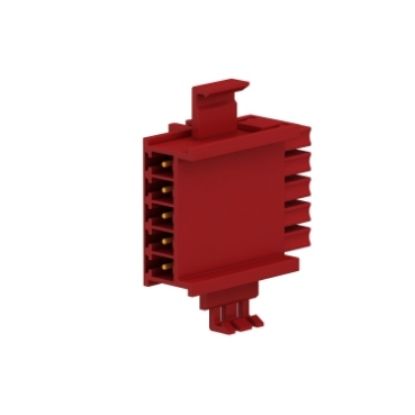

Picture of expansion connector, Modicon XPS MCM, to connect the expansion modules, single backplane

expansion connector, Modicon XPS MCM, to connect the expansion modules, single backplane

XPSMCMCN0000SG
$45.01 INC GST
View Detail
