Picture of safety controller, Harmony XPS MC, 24V DC, 32 inputs, 48 LEDs signalling, Profibus
SKU:

XPSMC32ZP

safety controller, Harmony XPS MC, 24V DC, 32 inputs, 48 LEDs signalling, Profibus

$5,483.28 INC GST
Available for Shipping : 19-Aug-2025
Product Selector
safety controller, Harmony XPS MC, 24V DC, 32 inputs, 48 LEDs signalling, Profibus
Be the first to review this product
Manufacturer: Telemecanique
CAD
Catalog
Declaration of conformity
Instruction sheet
User guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 32 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for a serial link communication with Modbus protocol. The transmission rate are 1200bps, 2400bps, 4800bps, 9600bps or 19200bps, and 1 SUB-D 9-pin female port for PROFIBUS communication. The transmission rate is 12Mbps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.84kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen.

Products specifications

Attribute name Attribute value
Main
Safety use category SIL 3 maximum conforming to IEC 61508, PLE maximum conforming to ISO 13849-1, category 4 maximum conforming to EN 954-1/EN/ISO 13849-1
Safety module name XPSMC
Number of inputs 32
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 20...20 %
Safety level can reach SIL 3 conforming to IEC 61508, can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1
Communication port protocol Profibus with 1 SUB-D 9-pin female port(s), serial link, transmission rate: 12 Mbps, Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
Type of start configurable
Product or component type configurable safety controller
Standards IEC 60947-5-1, EN 574/ISO 13851, EN 1760-1/ISO 13856-1, IEC 60204-1, IEC 61508, IEC 61496-1, EN 954-1/EN/ISO 13849-1
Product certifications TÜV, UL, CSA
Complementary
Synchronisation time between inputs depending on configuration selected
Function of module two-hand control category 3 conforming to EN 574/ISO 13851, light curtain monitoring category 4 conforming to IEC 61496, zero speed detection, shaft/chain breaking monitor, safety time delays, safety mat monitoring, position selector, muting function of light curtains, monitoring safety stop at top dead centre on eccentric press category 3 conforming to EN 574/ISO 13851, magnetic switch monitoring category 4 conforming to EN/IEC 61496, hydraulic press, guard monitoring with 1 or 2 limit switches, guard monitoring for injection presses and blowing machines, foot switch monitoring, enabling switch monitoring, 2 or 3 contacts, emergency stop monitoring, with or without time delay, 1 or 2-channel wiring, eccentric press, dynamic monitoring of hydraulic valves on linear presses
[Uc] control circuit voltage 28.8 V
Input protection type external fuse 16 A
Maximum line resistance 100 Ohm <2000 m
Method of access slave
Associated fuse rating 6 A fast blow for relay output, 4 A gL for relay output, 16 A gL for power supply
Response time configurable : 20 ms or 30 ms with software XPSMCWIN
Minimum output voltage 17 V for relay output
Power consumption in W 12 W
Output thermal current 6 A for 1 output and 2 A for the other for relay output, 4 A for both outputs simultaneously
[Ith] conventional free air thermal current 6.5 A for static output circuit, 16 A for relay output
Height 151.5 mm
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 2 A at 24 V for static output circuit
Depth 153 mm
Width 74 mm
Number of addresses 1-247 for Modbus, 1-125 for Profibus
Local signalling 48 LEDs
Supported modbus function 03: information and errors, 02: 32-bit input data/8-bit output data, 01: 8-bit output data/32-bit input data
Exchange size 14 words
Parity odd for Modbus, no for Modbus, even for Modbus
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Output type solid state, 6 circuit(s), volt-free, 2 relays, 2 NO contacts (4 NO total) circuit(s)
Net weight 0.84 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Minimum output current 10 mA for relay output
Data format RTU (Remote Terminal Unit) mode, 2 stop bits without parity, 1 stop bit even or odd, 1 start bit/8 data bits
Mounting support mounting plate
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.100 cm
Package 1 Weight 1.288 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.560 kg

Related products

Picture of plug-in screw connector - for XPSMC32Z configurable safety controller

plug-in screw connector - for XPSMC32Z configurable safety controller

XPSMCTS32
$145.73 INC GST
View Detail
Picture of plug-in spring connector - for XPSMC32Z configurable safety controller

plug-in spring connector - for XPSMC32Z configurable safety controller

XPSMCTC32
$148.63 INC GST
View Detail
Picture of connecting cable, Modicon MCM, Ethernet, shielded twisted pair straight cord, 2m, 2 x RJ45

connecting cable, Modicon MCM, Ethernet, shielded twisted pair straight cord, 2m, 2 x RJ45

490NTW00002
$181.91 INC GST
View Detail

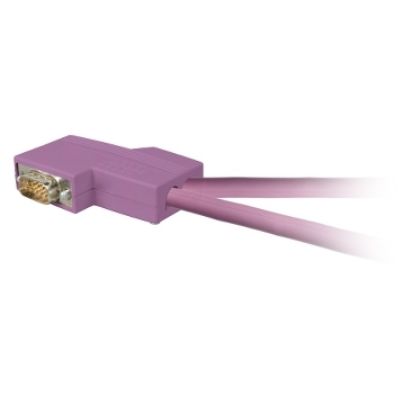

Picture of Profibus DP connecting cable - for profibus DP connector - 100 m
