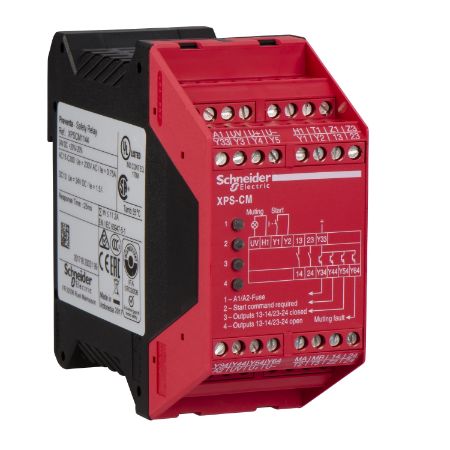

Picture of module XPS-CM - single-beam photo-electric sensors - 24 V DC
SKU:

XPSCM1144

module XPS-CM - single-beam photo-electric sensors - 24 V DC

Old price: $1,203.40 INC GST
$884.50 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
module XPS-CM - single-beam photo-electric sensors - 24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Declaration of conformity
Catalog
Instruction sheet
Quick start guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This XPSCM safety module is for monitoring of single-beam photo-electric sensors and has a built-in "muting" function. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 3.12E-7 1/h conforming to EN/IEC 62061, PFH = 3.12E-7 1/h conforming to EN/IEC 61508, DC = 95.5 % conforming to EN/ISO 13849-1, MTTFd = 16.6 years conforming to EN/ISO 13849-1
Safety module application for monitoring of single beam photo-electric sensor
Input voltage 24 V DC (terminal(s) U+, U-) for muting function, 24 V DC for sensor
Input compatibility XU9M18PP340... for muting function, XU2S18PP340... (infrared) for sensor, XU2M18PP340... for muting function, XC limit switch for muting function
Safety module name XPSCM
Range of product Telemecanique Safety light curtains XUSL
[Us] rated supply voltage 24 V DC - 20...20 %
Safety level can reach PL = c with the appropriate control system and correctly wired conforming to EN/ISO 13849-1, can reach SILCL 1 with the appropriate control system and correctly wired conforming to EN/IEC 62061, can reach category 2 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Function of module built-in muting
Number of additional circuits 0
Connections - terminals captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end, captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel, captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end
Output type relay 2 NO (13-14, 23-24), volt-free
Number of inputs 4 (terminal(s) Z1, Z2, Z3, Z4) for sensor, 2 (terminal(s) MA, MB) for muting function
Product or component type safety module
Complementary
Maximum response time on input open 25 ms
Protection type electronic internal fuse
Maximum supply current for sensors 200 mA
Maximum line resistance 10 Ohm for sensor power supply
Associated fuse rating 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, 6 A fast blow for relay output conforming to DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, 4 A gG for relay output conforming to DIN VDE 0660 part 200
Input current 200 mA for muting function
Minimum output voltage 17 V for relay output
Output thermal current 11 A maximum, 5.6 A per relay
Muting maximum duration 60 s (- 10...30 %)
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for solid state output
Synchronisation time between inputs 3 s (+/- 20 %) for the activation of the MA/MB muting signal
Sensor power supply U+, U-: 24-24 V DC
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, 300 V (pollution degree 2) conforming to DIN VDE 0110 parts 1 and 2
Local signalling 1 incandescent lamp, function muting power consumption: 4-6.5 W, 1 LED, function safety outputs open, 1 LED, function safety outputs closed, 1 LED, function restarting, 1 LED, function electronic internal fuse status
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, 4 kV overvoltage category III conforming to DIN VDE 0110 parts 1 and 2
Minimum output current 10 mA for relay output
Power consumption in W 15 W
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP40 (enclosure) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.4 cm
Package 1 Width 11.6 cm
Package 1 Length 16.0 cm
Package 1 Weight 400.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.564 kg
