SKU:

XPEB510

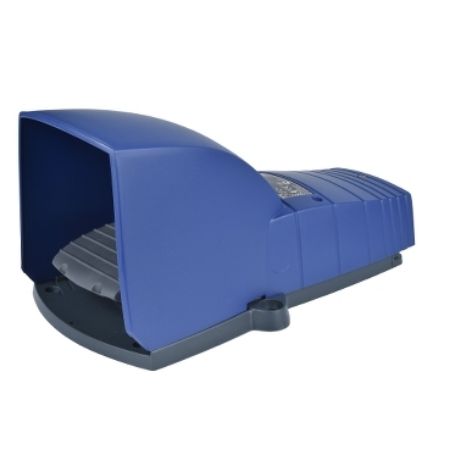

Single foot switch, Harmony XPE, plastic, blue, with cover, trigger mechanism, 1 step, 1 contact 1NC+NO, IP66

Old price: $661.10 INC GST
$515.66 INC GST
Available for Shipping : 12-Aug-2025
Single foot switch, Harmony XPE, plastic, blue, with cover, trigger mechanism, 1 step, 1 contact 1NC+NO, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony XPEB510 is a single foot switch. Its degree of protection is IP66. It has a cover, plastic material blue color, 1 NC + 1 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Products specifications

Attribute name Attribute value
Main
Device short name XPEB
Foot switch type single foot switch
Provided equipment cover
Contact operation 1 step
Colour blue
Contacts type and composition 1 NC + 1 NO
Trigger mechanism with trigger mechanism
Material plastic
Product or component type foot switch
Range of product Harmony XPE
Complementary
Maximum resistance across terminals 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3
Rated operational power in W 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Compatibility code XPEB
Mechanical durability 10000000 cycles
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
[Ie] rated operational current 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.7 kg
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Protective treatment TH
Overvoltage category class II conforming to NF C 20-030, class II conforming to EN/IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn conforming to IEC 60068-2-27
Standards NF E 09-031
Ambient air temperature for operation -25-70 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 17.200 cm
Package 1 Length 28.500 cm
Package 1 Weight 973.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.635 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.228 kg
