SKU:

XD5PA22

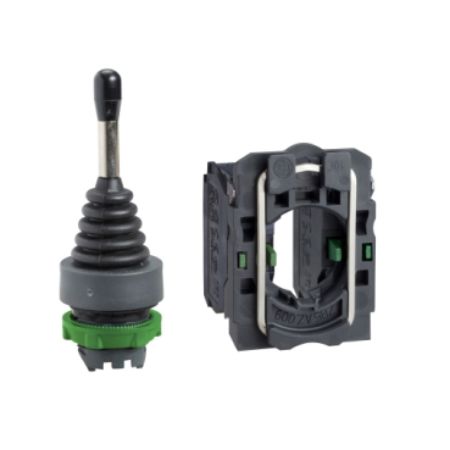

Joystick controller, Harmony XB5, 22mm, 2 direction, spring return, 1NO per direction

Old price: $333.30 INC GST
$259.97 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Joystick controller, Harmony XB5, 22mm, 2 direction, spring return, 1NO per direction
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB5, joystick controller operates with 2 direction spring return to zero position mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Device short name XD5
Sale per indivisible quantity 1
Fixing collar material plastic
Type of operator to 0 position spring return
Range of product Harmony XB5
Operator position information 3 positions
Operator profile 54 mm long operating shaft
Bezel material plastic
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Operator direction information 2 directions
Shape of signaling unit head round
Product or component type joystick controller
Mounting diameter 22 mm
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XD5
Mechanical durability 1000000 cycles
Contact operation slow-break
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Contacts material silver alloy (Ag/Ni)
Height 47 mm
Depth 108 mm
Width 30 mm
Notch per direction 1/1/2024 12:00:00 AM
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 NO
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Contacts usage standard
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1
Product certifications UL listed, GL, BV, LROS (Lloyds register of shipping), CSA, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.800 cm
Package 1 Width 4.400 cm
Package 1 Length 5.300 cm
Package 1 Weight 64.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.870 kg
