SKU:

XD4PA14

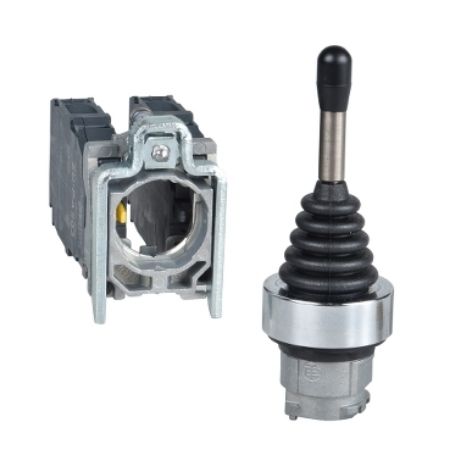

Joystick controller, Harmony XB4, metal, 22mm, 4 directions, stay put, 1NO

Old price: $472.89 INC GST
$368.85 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Joystick controller, Harmony XB4, metal, 22mm, 4 directions, stay put, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.

Products specifications

Attribute name Attribute value
Main
Device short name XD4
Contact operation slow-break
Sale per indivisible quantity 1
Type of operator stay put, long operating shaft 54 mm length
Fixing collar material zamak
Range of product Harmony XDA
Operator position information 5 positions
Bezel material chromium plated metal
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Operator direction information 4 directions
Product or component type joystick controller
Mounting diameter 22 mm
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XD4
Mechanical durability 1000000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Contacts material silver alloy (Ag/Ni)
Notch per direction 1/1/2024 12:00:00 AM
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.133 kg
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Contacts usage standard
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508
Product certifications GL, DNV, BV, UL listed, CSA, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.4 cm
Package 1 Width 4.5 cm
Package 1 Length 13.0 cm
Package 1 Weight 136.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.81 kg
