SKU:

XD2PA24

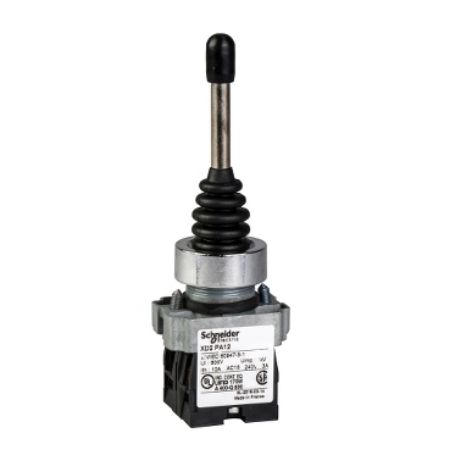

Complete joystick controller, Harmony XD2, 22mm, metal, 4 directions, 1NO per direction, with return position 0

Old price: $606.10 INC GST
$472.76 INC GST
Available for Shipping : 12-Aug-2025
Complete joystick controller, Harmony XD2, 22mm, metal, 4 directions, 1NO per direction, with return position 0
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XD2PA24 is a complete joystick controller diameter 22mm with 4 directions - 1 NO per direction. It is part of the range Harmony XD controllers for hoisting applications.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Range of product Harmony XD2
Bezel material chromium plated metal
Product or component type complete joystick controller
Mounting diameter 22 mm
Complementary
Compatibility code XD2
Mechanical durability 1000000 cycles
[Ie] rated operational current 3 A at 240 V, AC-15, A300, 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Fixing center 85 x 85 mm
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1<LineBreak/>
Height 146 mm
Contacts type and composition 1 NO for time delayed
Depth 40 mm
Notch per direction 1/1/2024 12:00:00 AM
Operator position information all positions
Overvoltage category class I conforming to IEC 61140
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to CSA C22.2 No 14, 600 V (pollution degree 3) conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 1 x 0.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.145 kg
Operator direction information 4 directions
Contact code designation A600-Q600
Return to 0 position
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Vibration resistance 5 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-1
Product certifications LROS (Lloyds register of shipping), CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 4.200 cm
Package 1 Length 14.800 cm
Package 1 Weight 158.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.790 kg
