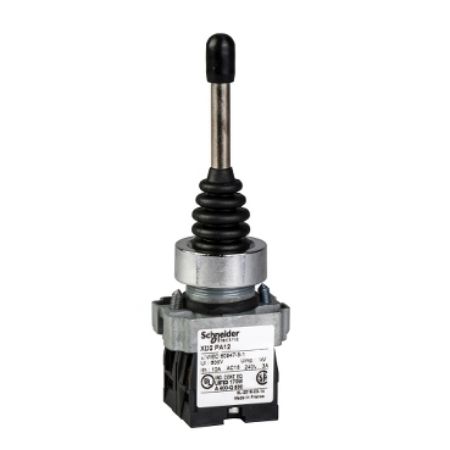

Picture of Complete joystick controller, Harmony XD2, 22mm, plastic, 2 directions, 1NO per direction, with return position 0
SKU:

XD2PA227

Complete joystick controller, Harmony XD2, 22mm, plastic, 2 directions, 1NO per direction, with return position 0

Old price: $541.75 INC GST
$422.56 INC GST
Availability: Please contact our sales team on 1300 724 622.
Complete joystick controller, Harmony XD2, 22mm, plastic, 2 directions, 1NO per direction, with return position 0
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XD2PA227 is a complete joystick controller diameter 22mm with 2 directions - 1 NO per direction. It is part of the range Harmony XD controllers for hoisting applications.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Bezel material black plastic
Product or component type complete joystick controller
Mounting diameter 22 mm
Range of product Harmony XD2
Complementary
Depth 40 mm
Compatibility code XD2
Notch per direction 1/1/2024 12:00:00 AM
Mechanical durability 1000000 cycles
Operator position information all positions
[Ie] rated operational current 3 A at 240 V, AC-15, A300, 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
Overvoltage category class I conforming to IEC 61140
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to CSA C22.2 No 14, 600 V (pollution degree 3) conforming to UL 508, 500 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 1 x 0.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end
Electrical durability 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.115 kg
Fixing center 30 x 85 mm
Operator direction information 2 directions
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1<LineBreak/>
Contact code designation A600-Q600
Height 122 mm
Return to 0 position
Contacts type and composition 1 NO for time delayed
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications CSA, UL, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 4.3 cm
Package 1 Length 15.0 cm
Package 1 Weight 133.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.869 kg
